| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
69,538 pcs
|
69538 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,047 pcs
|
5047 pcs | On Request | 1 | On Request | On Request | 05+06+ | On Request | On Request | |
|
2,474 pcs
|
2474 pcs | On Request | 1 | On Request | On Request | 0344+ | On Request | On Request | |
|
1,569 pcs
|
1569 pcs | On Request | 1 | On Request | On Request | 01+ | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Number of Ports | |
| Operating Temperature | |
| Protocol | |
| Supplier Device Package | |
| Supply Current | |
| Type | |
| Voltage |
The TSB41AB1PHP from Texas Instruments is a single-port IEEE 1394a-2000 compliant cable transceiver and arbiter. It provides one fully compliant cable port operating at 100/200/400 Megabits per second (Mbits/s).
This transceiver IC fully supports provisions of the IEEE 1394-1995 standard and is interoperable with FireWire and i.LINK implementations. It is also fully compliant with OpenHCI requirements. Key features include connection debounce, arbitrated short reset, multispeed concatenation, arbitration acceleration, and port disable/suspend/resume functionality.
The device operates from a single 3.3V supply and features low power consumption with an ultralow-power sleep mode. It is available in a 48-pin HTQFP package, suitable for surface mount applications. The operating temperature range is from 0°C to 70°C.
Designed for high-performance serial bus applications, the TSB41AB1PHP integrates essential functions for IEEE 1394 connectivity, making it suitable for various digital interface needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TSB41AB1PHP operates at a supply voltage between 3V and 3.6V.

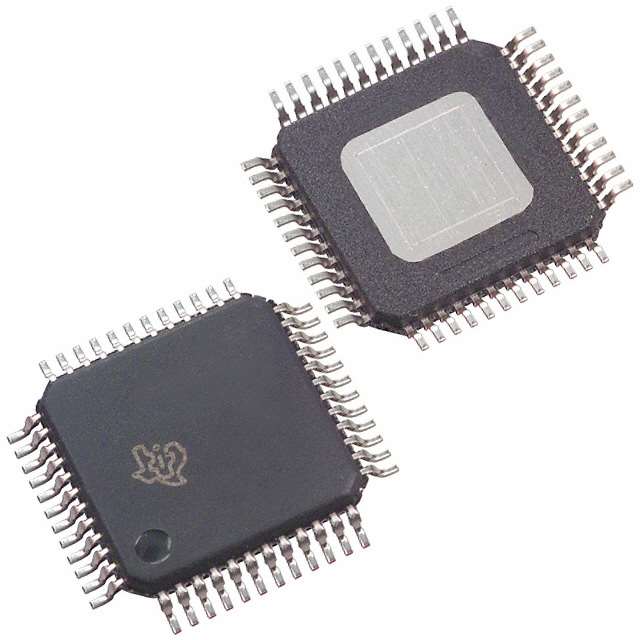

The TSB41AB1PHP is packaged in a 48-HTQFP (PowerTQFP) surface-mount package.
The TSB41AB1PHP supports a data rate of 400 Mbits per second.
The TSB41AB1PHP operates within a temperature range of 0°C to 70°C.
The RoHS status is unverified; it is marked as RoHS3 compliant with low confidence.
