TS952IPT The STMicroelectronics TS952IPT is a dual operational amplifier featuring a 3 MHz gain bandwidth product and rail-to-rail input/output capabilities. It operates from a 2.7V to 12V supply.
Mfr Part #:

TS952IPT

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics TS952IPT is a dual operational amplifier featuring a 3 MHz gain bandwidth product and rail-to-rail input/output capabilities. It operates from a 2.7V to 12V supply.
✓ Total Stock: 456,570 pcs
$ Price Range: $1.32

TS952IPT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
452,000 pcs
On Request
452000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,570 pcs
On Request
4570 pcs On Request 1 On Request On Request 04+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS952IPT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Length
Mounting Type
Output Current
Slew Rate
Speed
Tape & Reel
View Similar Products (0)

TS952IPT Description

Short technical summary and product information.

The STMicroelectronics TS952IPT is a BiCMOS operational amplifier designed for efficient operation across a wide voltage range from 2.7V to 12V. It offers a 3 MHz gain bandwidth product and a low 0.9 mA current consumption at 3V.



Key electrical characteristics include a low input bias current of 200 nA, a low input offset voltage of 8 mV, and a slew rate of 1 V/μs. The amplifier provides rail-to-rail common mode input voltage range and rail-to-rail output voltage swing, making it suitable for applications requiring maximum dynamic range.

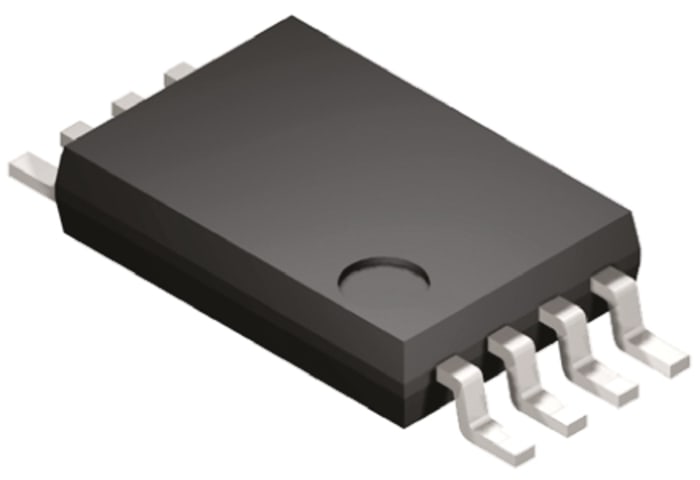

This operational amplifier is housed in a compact 8-pin TSSOP surface mount package. It operates within a temperature range of -40°C to 125°C, ensuring reliability in various environmental conditions. The TS952IPT is optimized for low distortion at 0.01% and offers a power supply rejection ratio of 80 dB.



Designed for versatility, the TS952IPT is part of the TS95x series, which includes single (TS951) and quad (TS954) channel options. Its features make it suitable for a wide array of electronic designs requiring precise signal amplification.

TS952IPT Quick Information

Product Type: Operational Amplifier
Series: TS952
Canonical Name: STMicroelectronics TS952IPT Operational Amplifier
Subcategory: Operational Amplifiers

TS952IPT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS952IPT Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS952IPT Features

  • 3 MHz gain bandwidth product.
  • 2.7V to 12V supply voltage range.
  • Rail-to-rail input and output.
  • Low distortion at 0.01%.
  • Compact 8-pin TSSOP package.

TS952IPT Applications

  • Suitable for low voltage applications.
  • Ideal for signal amplification circuits.
  • Used in battery powered devices.
  • General purpose analog signal processing.

TS952IPT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the gain bandwidth product of the TS952IPT?

The gain bandwidth product of the TS952IPT is 3 MHz.

What is the minimum and maximum supply voltage for the TS952IPT?

The TS952IPT operates with a minimum supply voltage of 2.7V and a maximum of 12V.

What is the operating temperature range for the TS952IPT?

The operating temperature range for the TS952IPT is from -40°C to 125°C.

What package type is the TS952IPT supplied in?

The TS952IPT is supplied in a TSSOP package.

What is the input bias current of the TS952IPT?

The input bias current for the TS952IPT is 200 nA.

What is the slew rate of the TS952IPT?

The slew rate of the TS952IPT is 1 V/μs.

Does the TS952IPT have rail-to-rail input and output?

Yes, the TS952IPT features rail-to-rail common mode input voltage range and rail-to-rail output voltage swing.
