| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,490 pcs
|
5490 pcs | On Request | 1 | On Request | On Request | 1242+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CMRR, PSRR (Typ) | |
| Current | |
| Hysteresis | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Propagation Delay (Max) | |
| Storage Temperature | |
| Supplier Device Package | |
| Supply Current | |
| Tape & Reel | |
| Type | |
| Voltage |
The TS9001-1IJ5T is a nanopower analog comparator from Silicon Labs, designed for ultra-low power applications. It guarantees operation down to +1.6V and draws a minimal supply current of 600nA. The comparator features an internal 1.252V ±1% reference and a robust input stage that can tolerate voltages beyond the power supply rails.
The TS9001-1IJ5T has a push-pull output stage capable of driving loads and offers internal hysteresis for clean switching. Its propagation delay is a maximum of 50µs, with a typical hysteresis of 4mV. The device operates within a temperature range of -40°C to 85°C and is available in a 5-pin SC-70-5 surface mount package.
This comparator is suitable for applications such as battery monitoring, medical instruments, threshold detectors, and remote systems where low power consumption is critical. Its compact size and low power draw make it an ideal choice for battery-operated devices and portable electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS9001-1IJ5T is guaranteed to operate down to 1.6V and supports a supply voltage range of 2.1V to 5.5V.
The TS9001-1IJ5T has an ultra-low supply current of 600nA, with a maximum quiescent current of 6.6µA.
The TS9001-1IJ5T features a push-pull output stage, described as push-pull, rail-to-rail.

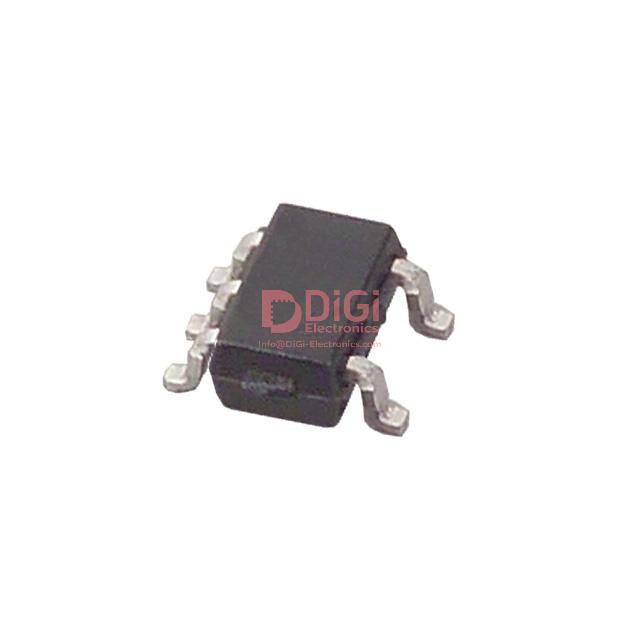

The TS9001-1IJ5T is supplied in a 5-pin SC-70-5 package, also referred to as 5-TSSOP, SC-70-5, SOT-353.
The TS9001-1IJ5T operates within a temperature range of -40°C to 85°C.
The maximum propagation delay for the TS9001-1IJ5T is 50µs.
Yes, the TS9001-1IJ5T has an internal hysteresis of 4mV.
