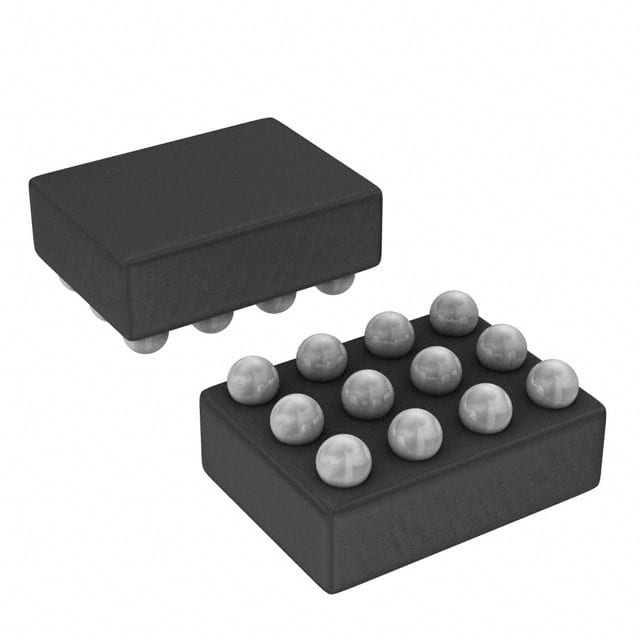

TS5USBC402IYFPR The Texas Instruments TS5USBC402IYFPR is a dual 2:1 USB 2.0 analog switch. It offers a bandwidth of 1.2 GHz and supports USB 2.0 speeds up to 480 Mbps.
Mfr Part #:

TS5USBC402IYFPR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TS5USBC402IYFPR is a dual 2:1 USB 2.0 analog switch. It offers a bandwidth of 1.2 GHz and supports USB 2.0 speeds up to 480 Mbps.
✓ Total Stock: 20,702 pcs
$ Price Range: $0.50

TS5USBC402IYFPR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
20,089 pcs
On Request
20089 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
613 pcs
On Request
613 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS5USBC402IYFPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Configuration
Features
Lead Spacing
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Supply Voltage
Tape & Reel
Voltage
View Similar Products (0)

TS5USBC402IYFPR Description

Short technical summary and product information.

The TS5USBC402IYFPR from Texas Instruments is a bidirectional, low-power, dual-port analog switch designed for high-speed USB 2.0 applications. It is configured as a dual 2:1 or 1:2 switch, optimized for handling USB 2.0 D+/- lines, particularly within USB Type-C systems.



Key electrical specifications include a maximum bandwidth of 1.2 GHz and support for USB 2.0 speeds up to 480 Mbps. The device features a low typical on-resistance of 5.6 Ohms and a maximum on-resistance of 9 Ohms. It can handle input/output voltages ranging from 0V to 20V, with overvoltage protection (OVP) on common pins up to 20V. The supply voltage range is 2.3V to 5.5V, and it operates with a low typical supply current of 2.2 µA.



This analog switch supports UART and USB 2.0 protocols. It is packaged in a compact 12-DSBGA (12-XFBGA, DSBGA) surface-mount package. The operating temperature range is -40°C to 85°C, making it suitable for various industrial environments. ESD protection is rated at 2 kV HBM (Human Body Model).



The TS5USBC402 is designed for applications requiring flexible signal routing and protection for USB 2.0 data lines. Its features make it suitable for integration into systems where reliable USB connectivity is essential.

TS5USBC402IYFPR Quick Information

Product Type: Analog Switch
Series: TS5USBC402
Canonical Name: TS5USBC402 Dual 2:1 USB 2.0 Mux/DeMux or Single Ended Cross Switch with 20-V Overvoltage Protection
Subcategory: Special Purpose

TS5USBC402IYFPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS5USBC402IYFPR Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS5USBC402IYFPR Features

  • Dual 2:1 or 1:2 USB 2.0 analog switch.
  • Supports 480 Mbps USB 2.0 data rates.
  • 1.2 GHz maximum bandwidth for signal integrity.
  • Integrated 20V overvoltage protection on common pins.
  • Wide -40°C to 85°C operating temperature range.

TS5USBC402IYFPR Applications

  • Ideal for USB Type-C systems.
  • Suitable for UART signal routing.
  • Used in portable electronic devices.
  • Applicable in industrial control systems.
  • Enables flexible signal path switching.

TS5USBC402IYFPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum USB speed supported by the TS5USBC402IYFPR?

The TS5USBC402IYFPR supports USB 2.0 speeds up to 480 Mbps.

What is the bandwidth of the TS5USBC402IYFPR analog switch?

The device has a maximum bandwidth of 1200 MHz.

What is the typical on-resistance of the TS5USBC402IYFPR?

The typical on-resistance is 5.6 Ohms.

What is the operating temperature range for the TS5USBC402IYFPR?

The operating temperature range is -40°C to 85°C.

What is the supply voltage range for this component?

The supply voltage range is 2.3V to 5.5V.

What protocols does the TS5USBC402IYFPR support?

It supports UART and USB 2.0 protocols.

What package type is the TS5USBC402IYFPR supplied in?

The TS5USBC402IYFPR is supplied in a 12-DSBGA package.
