| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
241,067 pcs
|
241067 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24,929 pcs
|
24929 pcs | On Request | 1 | On Request | On Request | 2014+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |
The Texas Instruments TS5A23167YZPR is a dual single-pole single-throw (SPST) analog switch designed for versatile operation across a voltage range of 1.65V to 5.5V. This device offers a low ON-state resistance of 0.9 Ohms, making it suitable for various signal routing applications.
Key electrical characteristics include a bandwidth of 150MHz, charge injection of 6pC, and switch times of 7.5ns (Ton) and 11ns (Toff). The switch provides excellent crosstalk performance of -85dB at 1MHz and a channel resistance of 40mOhm. It operates within an ambient temperature range of -40°C to 85°C.

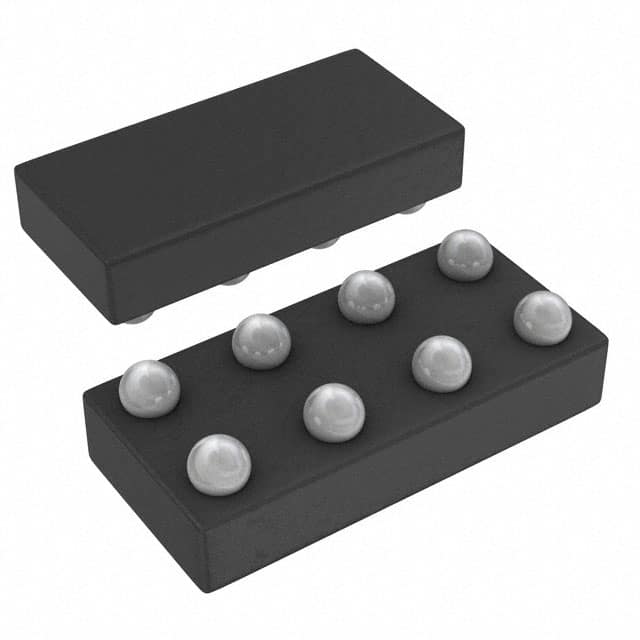

The TS5A23167YZPR is supplied in an 8-DSBGA package, a compact surface-mount solution. The standard package quantity is 3000 units on a tape and reel.
This analog switch is suitable for applications requiring efficient signal switching and low distortion, such as portable audio devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS5A23167YZPR operates from 1.65V to 5.5V.
The maximum on-state resistance is 0.9 Ohms.
The TS5A23167YZPR is supplied in an 8-DSBGA package.
The operating temperature range is -40°C to 85°C.
