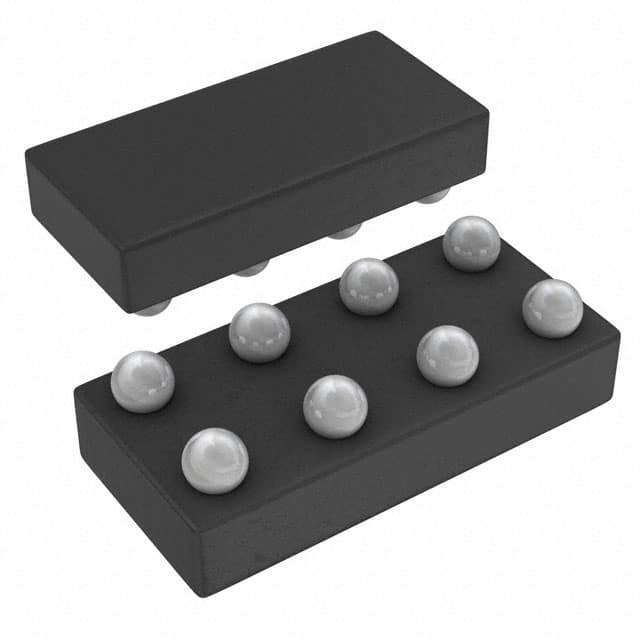

The TS5A23166YZTR from Texas Instruments is a dual single-pole single-throw (SPST) analog switch. It operates across a wide power supply voltage range from 1.65V to 5.5V, making it versatile for various applications. This device features a low typical on-resistance of 0.75 Ohms and a maximum of 0.9 Ohms, ensuring minimal signal loss.
With a bandwidth of 150 MHz, the TS5A23166YZTR is suitable for applications requiring fast signal switching. It offers excellent channel-to-channel ON-state resistance matching and low charge injection (6 pC). The switch operates within an environmental temperature range of -40°C to 85°C.
Packaged in an 8-DSBGA (8-UFBGA, DSBGA) format, this component is designed for surface mounting. It is supplied on tape and reel with a standard package quantity of 3000 units. The dimensions for the tape and reel packaging are provided, including reel diameter, width, and component placement dimensions.
Key electrical characteristics include a low ON-state leakage current of 0.05 µA and a low supply current of 0.001 µA. The switch circuit is SPST - NO, with switch times (Ton, Toff) of 7.5ns and 11ns respectively. Crosstalk is rated at -85dB at 1MHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical on-resistance of the TS5A23166YZTR is 0.75 Ohms.
The bandwidth of the TS5A23166YZTR is 150 MHz.
The operating temperature range for the TS5A23166YZTR is -40°C to 85°C.
The TS5A23166YZTR is supplied in an 8-DSBGA package.
The TS5A23166YZTR has 2 circuits.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
