| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,080 pcs
|
5080 pcs | On Request | 1 | 12 | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |
The TS5A22366YFCR from Texas Instruments is a dual single-pole double-throw (SPDT) analog switch designed for versatile signal routing applications. It operates from a power supply voltage range of 2.25 V to 5.5 V, making it suitable for various system designs.
Key electrical characteristics include a typical on-resistance of 0.7 Ω and a bandwidth of 32 MHz, ensuring efficient signal transmission. The switch features 1.8-V compatible control inputs and negative signal capability, allowing signals below ground to pass without distortion. It also incorporates a break-before-make feature to prevent signal distortion during switching.

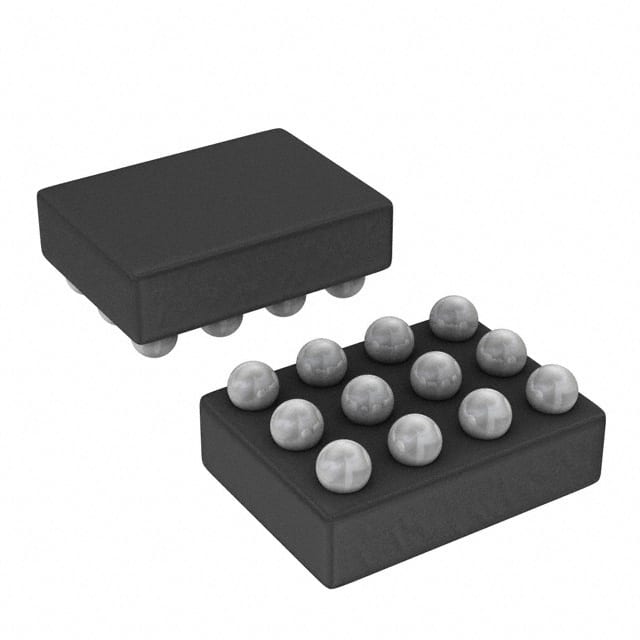

Packaged in a compact 12-DSBGA, this surface-mount device is ideal for applications requiring space efficiency. The operating temperature range is -40°C to 85°C, providing reliability in diverse environmental conditions. The TS5A22366YFCR is designed for applications needing reliable analog signal switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS5A22366YFCR operates from a 2.25V to 5.5V power supply.
The typical on-resistance for the TS5A22366YFCR is 0.7 Ω.
The bandwidth of the TS5A22366YFCR is 32 MHz.
The TS5A22366YFCR operates between -40°C and 85°C.
The TS5A22366YFCR is available in a 12-DSBGA package.
