TS5A12301EYFPR The Texas Instruments TS5A12301EYFPR is a 2:1 SPDT analog switch. It features low on-resistance and a wide operating temperature range.
Mfr Part #:

TS5A12301EYFPR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TS5A12301EYFPR is a 2:1 SPDT analog switch. It features low on-resistance and a wide operating temperature range.
✓ Total Stock: 173,679 pcs
$ Price Range: $0.24

TS5A12301EYFPR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
164,364 pcs
On Request
164364 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
5,430 pcs
On Request
5430 pcs On Request 1 On Request On Request 2133+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,700 pcs
On Request
3700 pcs On Request 1 On Request On Request 15+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
185 pcs
On Request
185 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS5A12301EYFPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Channel
Channel Capacitance (CS(off), CD(off))
Charge Injection
Crosstalk
Current
Latch-up Performance
Mounting Type
Multiplexer
Number of Circuits
On
Operating Temperature
Supplier Device Package
Supply Current
Switch Circuit
Switch Time (Ton, Toff) (Max)
Voltage
View Similar Products (0)

TS5A12301EYFPR Description

Short technical summary and product information.

The TS5A12301EYFPR from Texas Instruments is a single-pole, double-throw (SPDT) analog switch designed for various applications. This device operates within a power supply voltage range of 2.5V to 5.5V and features a low on-resistance of typically 0.75Ω.



Key electrical characteristics include a bandwidth of 55MHz, typical supply current of 0.1µA, and a maximum ON-state leakage current of 0.2µA. The switch offers a fast switching time with typical values of 225ns for turn-on and 215ns for turn-off. It also provides a crosstalk of -63dB at 1MHz and a charge injection of 97pC.

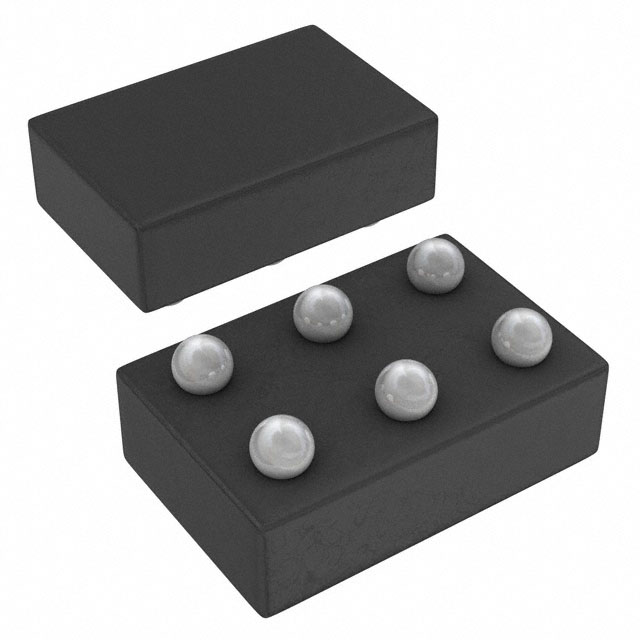

This analog switch is housed in a 6-DSBGA package and is designed for surface mounting. It operates reliably within an ambient temperature range of -40°C to 85°C. The device also exhibits robust ESD performance, tested per JESD 22 standards, including up to 8000V on the COM port to GND.



Applications for the TS5A12301EYFPR include portable instrumentation, cell phones, PDAs, and MP3 players, where efficient signal switching and low power consumption are critical.

TS5A12301EYFPR Quick Information

Product Type: Analog Switch
Canonical Name: TS5A12301EYFPR 2:1 SPDT Analog Switch
Subcategory: Switches & multiplexers

TS5A12301EYFPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS5A12301EYFPR Estimated Pricing

Qty Low High
1+ $0.24 $0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS5A12301EYFPR Features

  • Low 0.75Ω typical on-resistance.
  • 55MHz bandwidth for signal switching.
  • Wide 2.5V to 5.5V supply voltage.
  • Surface mount 6-DSBGA package.
  • Operates from -40°C to 85°C.

TS5A12301EYFPR Applications

  • Suitable for portable electronics.
  • Used in cell phone designs.
  • Ideal for PDAs.
  • Applicable to MP3 players.

TS5A12301EYFPR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the on-resistance of the TS5A12301EYFPR?

The typical on-resistance is 0.75Ω.

What is the bandwidth of this analog switch?

The bandwidth is 55MHz.

What is the operating temperature range for the TS5A12301EYFPR?

It operates from -40°C to 85°C.

What is the package type for the TS5A12301EYFPR?

The package is a 6-DSBGA, designed for surface mounting.

Is the TS5A12301EYFPR RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
