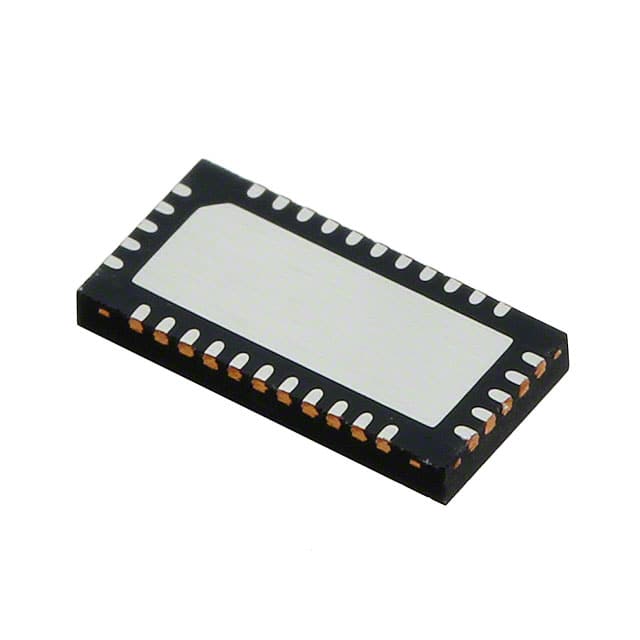

TS3V713ELRTGR The TS3V713ELRTGR from Texas Instruments is a 7-channel, 2:1 SPDT analog switch designed for VGA signals. It offers a high bandwidth of 1.3 GHz.
Mfr Part #:

TS3V713ELRTGR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TS3V713ELRTGR from Texas Instruments is a 7-channel, 2:1 SPDT analog switch designed for VGA signals. It offers a high bandwidth of 1.3 GHz.
✓ Total Stock: 72,762 pcs
$ Price Range: $2.04

TS3V713ELRTGR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
66,963 pcs
On Request
66963 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,968 pcs
On Request
3968 pcs On Request 1 On Request On Request 17+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,651 pcs
On Request
1651 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS3V713ELRTGR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Configuration
Crosstalk
Features
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Operating Voltage
Supplier Device Package
Switch Circuit
Voltage
View Similar Products (0)

TS3V713ELRTGR Description

Short technical summary and product information.

The Texas Instruments TS3V713ELRTGR is a versatile 7-channel, 2:1 SPDT analog switch designed for video applications. It supports Composite, RGB, and VGA protocols, making it suitable for systems requiring high-quality video signal routing.



This switch boasts a high bandwidth of 1.3 GHz, ensuring signal integrity for demanding video formats. It operates over a wide voltage range of 3V to 5.5V, with typical on-resistance of 4 Ohms and low capacitance. The device includes integrated level shifting buffers for HSYNC and VSYNC channels, simplifying system design.



Packaged in a 32-WQFN (6x3 mm) with an exposed pad for enhanced thermal performance, the TS3V713ELRTGR is designed for surface mounting. Its operating temperature range is -40°C to 85°C. Key features include low off-isolation and minimal crosstalk, crucial for maintaining signal clarity in complex video paths.



Applications for the TS3V713ELRTGR include notebook computers, docking stations, and KVM switches where reliable video signal switching is essential. The integrated ESD protection further enhances its robustness in various environments.

TS3V713ELRTGR Quick Information

Product Type: Analog Switch
Series: TS3V713EL
Canonical Name: TS3V713ELRTGR 7-Channel VGA SPDT Switch with Level Shifters
Subcategory: Special Purpose

TS3V713ELRTGR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS3V713ELRTGR Estimated Pricing

Qty Low High
1+ $2.04 $2.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS3V713ELRTGR Features

  • 7-channel, 2:1 SPDT analog switch.
  • High bandwidth of 1.3 GHz for video signals.
  • Supports VGA, RGB, and composite protocols.
  • Integrated level shifters for HSYNC/VSYNC.
  • Surface mount 32-WQFN package.

TS3V713ELRTGR Applications

  • Ideal for notebook computer video.
  • Suitable for docking station interfaces.
  • Used in KVM switch designs.
  • Provides robust video signal routing.
  • Supports DDC communication channels.

TS3V713ELRTGR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TS3V713ELRTGR?

The TS3V713ELRTGR operates from 3V to 3.6V and also supports 4.5V to 5.5V.

What is the package type of the TS3V713ELRTGR?

The TS3V713ELRTGR is available in a 32-WQFN (6x3) exposed pad package.

What is the operating temperature range for this analog switch?

The operating temperature range is -40°C to 85°C.

What is the RoHS status of the TS3V713ELRTGR?

The RoHS status is RoHS3 Compliant.

What is the bandwidth of the TS3V713ELRTGR?

The TS3V713ELRTGR has a bandwidth of 1300 MHz.

How many channels does the TS3V713ELRTGR support?

The TS3V713ELRTGR supports 7 channels.

What is the typical on-resistance of the TS3V713ELRTGR?

The typical on-resistance for the R, G, B switches is 4 Ohms.
