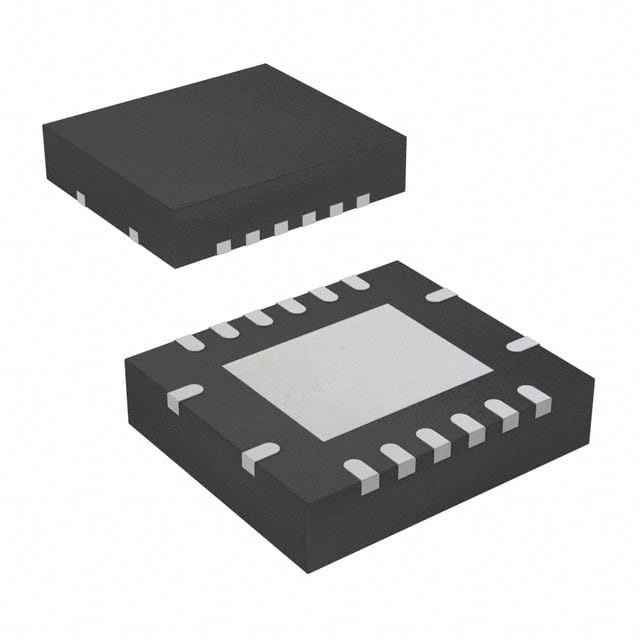

The TS3V340RGYR from Texas Instruments is a 4-channel, 2:1 Single Pole Double Throw (SPDT) video switch. It offers a wide bandwidth of 500 MHz, making it suitable for video signal routing.
This device features a low typical on-resistance of 3 Ohms and a maximum on-resistance of 6000 mOhms, ensuring minimal signal degradation. The operating voltage range is from 3V to 3.6V, with a typical supply current of 700 µA. It operates across a temperature range of -40°C to 85°C.
The TS3V340RGYR supports both RGB and composite video protocols. It is available in a 16-VQFN package with surface mount mounting type. The switch circuit is SPDT, and it handles a 2:1 multiplexing configuration.
Key electrical characteristics include low differential gain and phase, low crosstalk of -80 dB, and near-zero propagation delay. It is designed for bidirectional data flow and includes features like undershoot clamp diodes on data and control inputs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS3V340RGYR has a bandwidth of 500 MHz.
The typical on-resistance of the TS3V340RGYR is 3 Ohms.
The TS3V340RGYR operates from 3V to 3.6V.
The operating temperature range is -40°C to 85°C.
The TS3V340RGYR is available in a 16-VQFN (4x3.5) package with a surface mount type.
