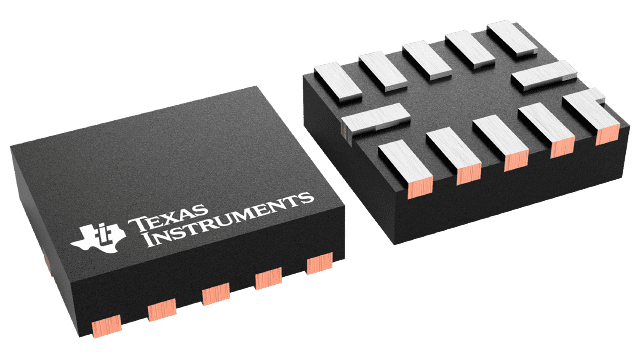

TS3USBA225RUTR The Texas Instruments TS3USBA225RUTR is a 2-channel, single-pole triple-throw (SP3T) analog switch designed for USB 2.0 High-Speed (480 Mbps) and audio applications. It operates from a 2.7V to 5V supply.
Mfr Part #:

TS3USBA225RUTR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TS3USBA225RUTR is a 2-channel, single-pole triple-throw (SP3T) analog switch designed for USB 2.0 High-Speed (480 Mbps) and audio applications. It operates from a 2.7V to 5V supply.
✓ Total Stock: 5,283 pcs
$ Price Range: $0.44

TS3USBA225RUTR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,265 pcs
On Request
3265 pcs On Request 1 On Request On Request 16+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request 2026-02-23 21:33:16
Optech Co.,Limited ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request 1627+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS3USBA225RUTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Bandwidth
Features
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Storage Temperature
Supplier Device Package
Supplier Package
Supply Current
Switch Circuit
Tape & Reel
Turn Off Time
Turn On Time
Voltage
View Similar Products (0)

TS3USBA225RUTR Description

Short technical summary and product information.

The TS3USBA225RUTR from Texas Instruments is a versatile 2-channel analog switch supporting USB 2.0 High-Speed (480 Mbps) and audio signals. It features a single-pole triple-throw (SP3T) configuration, enabling flexible signal routing.



This device offers a wide operating voltage range of 2.7V to 5V and operates reliably in temperatures from -40°C to 85°C. Key electrical specifications include a typical on-resistance of 6.5 Ohms for USB signals and 2.5 Ohms for audio, with a substantial bandwidth of 1900 MHz. It also supports negative signal capability down to -1.8V.



The TS3USBA225RUTR is housed in a compact 12-UQFN (1.7x2 mm) surface-mount package, making it suitable for space-constrained designs. Its features include 1.8V compatible control inputs and low power consumption in power-down mode. The switch provides power-off protection, ensuring all I/O pins are high-impedance when VCC is 0V.

TS3USBA225RUTR Quick Information

Product Type: Analog Switch
Canonical Name: TS3USBA225 USB 2.0 High-Speed and Audio Switch
Subcategory: Special Purpose

TS3USBA225RUTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS3USBA225RUTR Estimated Pricing

Qty Low High
1+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS3USBA225RUTR Features

  • 2-channel SP3T USB 2.0 and audio switch.
  • Supports 480 Mbps USB high-speed data.
  • Offers 1.9 GHz bandwidth for signal integrity.
  • Operates from 2.7V to 5V supply voltage.
  • Compact 12-UQFN surface-mount package.

TS3USBA225RUTR Applications

  • Ideal for USB 2.0 data routing.
  • Suitable for audio signal switching.
  • Used in portable electronic devices.
  • Enables flexible signal path selection.

TS3USBA225RUTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TS3USBA225RUTR?

The TS3USBA225RUTR operates from a 2.7V to 5V supply.

What is the operating temperature range of the TS3USBA225RUTR?

The operating temperature range is -40°C to 85°C.

What is the typical on-resistance for USB signals on the TS3USBA225RUTR?

The typical on-resistance for USB signals is 6.5 Ohms.

What is the bandwidth of the TS3USBA225RUTR?

The bandwidth is 1900 MHz.

How many channels does the TS3USBA225RUTR have?

The TS3USBA225RUTR has 2 channels.

What type of switch circuit is the TS3USBA225RUTR?

The TS3USBA225RUTR is a single-pole triple-throw (SP3T) switch circuit.

What is the package type for the TS3USBA225RUTR?

The TS3USBA225RUTR is available in a 12-UQFN package.
