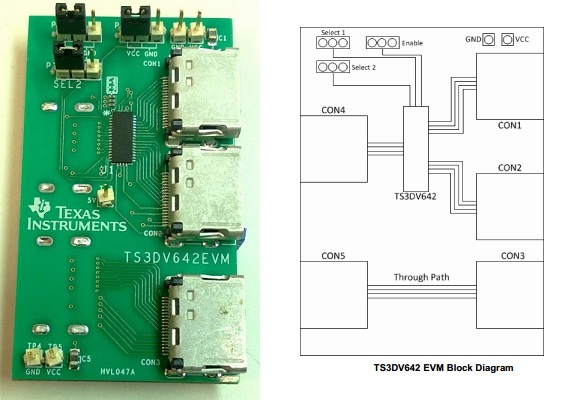

The TS3DV642 from Texas Instruments is a 12-channel, 1:2 or 2:1 bidirectional multiplexer/demultiplexer designed for high-speed signal routing. Operating within a 2.6 V to 4.5 V supply range, it is well-suited for battery-powered applications.
This device boasts a typical differential bandwidth of up to 7.5 GHz (Port B), making it ideal for demanding applications such as HDMI 2.0 (supporting 4k2k up to 60 Hz), DisplayPort 1.4, and DVI 1.0 signal switching. It also supports general-purpose TMDS and LVDS signal switching.
Key electrical characteristics include low on-state resistance (RON) of 6.5 Ω (Port A) and 8.2 Ω (Port B), and low I/O capacitance of 0.5 pF. The TS3DV642 features IOFF protection, preventing current leakage in powered-down states, and offers a power-down mode for minimal power consumption. It is housed in a 42-pin WQFN package measuring 9 mm x 3.5 mm with a 0.5 mm pitch.
ESD protection is provided with a 2-kV Human Body Model rating and a 1-kV Charged Device Model rating. The device operates across a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS3DV642 operates with a supply voltage (VCC) ranging from 2.6 V to 4.5 V.
The TS3DV642 is available in a WQFN package, with a body size of 9 mm x 3.5 mm and a 0.5 mm pitch.
The TS3DV642 can operate within a temperature range of -40°C to 85°C.
The TS3DV642 supports a maximum speed of 6 Gbps.
The TS3DV642 has 12 channels.
The typical differential bandwidth is 6.9 GHz for Port A and 7.5 GHz for Port B.
The TS3DV642 has an ESD performance of 2 kV Human Body Model (A114B, Class II) and 1 kV Charged Device Model (C101).
