| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,502 pcs
|
6502 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,321 pcs
|
1321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Configuration | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Multiplexer | |
| Number of Channels | |
| On | |
| Operating Temperature | |
| Operating Temperature Range | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments TS3DDR4000ZBAR is a high-speed analog switch designed for DDR2, DDR3, and DDR4 memory interfaces. This 12-channel device functions as a 2:1 multiplexer, enabling flexible signal routing.
Key electrical characteristics include a typical on-resistance of 8 Ω and a high bandwidth of 5.6 GHz (single-ended) and 6.0 GHz (differential). It operates over a wide voltage range of 2.375 V to 3.6 V and features low bit-to-bit skew of 3 ps typical. The device also provides low crosstalk of -34 dB at 1067 MHz and supports various signaling protocols like POD_12, SSTL_12, SSTL_15, and SSTL_18.

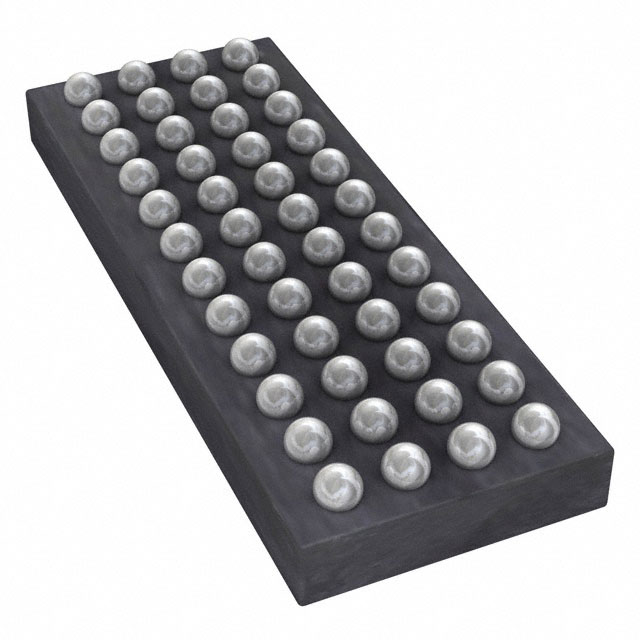

Packaged in a 48-NFBGA (8x3 mm) surface-mount package, the TS3DDR4000ZBAR is suitable for space-constrained designs. It operates within an ambient temperature range of -40°C to 85°C. The switch includes I OFF protection, preventing current leakage when powered down, and has a low supply current of 40 µA typical, with a low-power mode consuming only 2 µA typical.
This component is ideal for memory applications requiring efficient signal switching and multiplexing, ensuring signal integrity in high-speed digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.375 V to 3.6 V.
The TS3DDR4000ZBAR is available in a 48-NFBGA (8x3 mm) surface-mount package.
The operating temperature range is -40°C to 85°C.
It supports DDR2, DDR3, DDR4, MIPI, POD_12, SSTL_12, SSTL_15, and SSTL_18 signaling.
The typical on-resistance is 8 Ω.
The typical bandwidth is 5.6 GHz single-ended and 6.0 GHz differential.
The TS3DDR4000ZBAR has 12 channels.
