| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59,279 pcs
|
59279 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25,844 pcs
|
25844 pcs | On Request | 1 | On Request | On Request | 1844+ | On Request | On Request | |
|
9,990 pcs
|
9990 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,515 pcs
|
1515 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,165 pcs
|
1165 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Crosstalk | |
| Current | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Tape & Reel | |
| Voltage |
The Texas Instruments TS3A4751RUCR is a bidirectional, 4-channel, normally open (NO) single-pole single-throw (SPST) analog switch. It is designed for single-supply operation from 1.6-V to 3.6-V.
Key electrical characteristics include a low on-resistance of 0.9 Ω maximum at a 3-V supply and 1.5 Ω maximum at a 1.8-V supply. The device offers a bandwidth of 125 MHz and fast switching speeds with typical Ton of 14 ns and Toff of 9 ns. It handles continuous currents up to 0.1 A and features low charge injection of 3 pC.

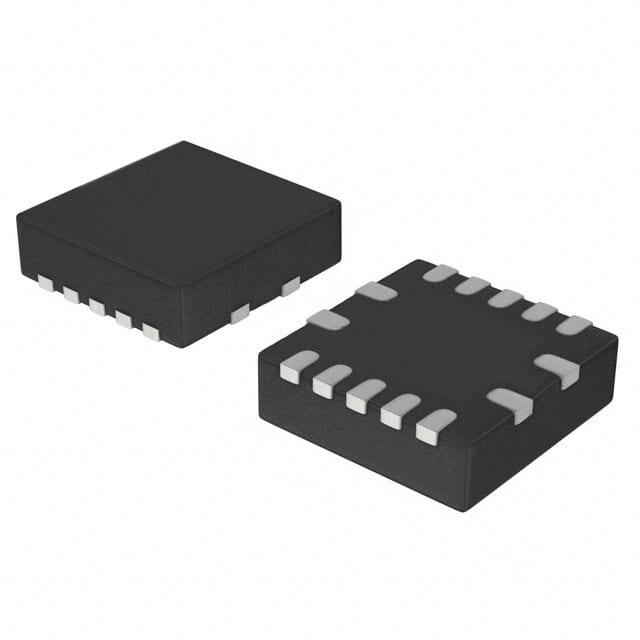

The TS3A4751RUCR operates within an ambient temperature range of -40°C to 85°C. It is available in a compact 14-QFN (2x2 mm) surface-mount package, making it suitable for space-constrained applications.
This analog switch supports both digital and analog applications and is compatible with 1.8-V CMOS logic when using a 3-V supply. It also provides ESD protection exceeding JESD-22 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS3A4751RUCR operates from a single supply voltage range of 1.6 V to 3.6 V.
The maximum on-resistance is 0.9 Ohms at a 3-V supply and 1.5 Ohms at a 1.8-V supply.
The bandwidth of the TS3A4751RUCR is 125 MHz.
The operating temperature range is -40°C to 85°C.
The TS3A4751RUCR is available in a 14-QFN (2x2 mm) surface-mount package.
