TS391IQ2T The STMicroelectronics TS391IQ2T is a general purpose comparator IC. It operates with a supply voltage range of 2V to 36V and comes in an 8-DFN package.
Mfr Part #:

TS391IQ2T

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics TS391IQ2T is a general purpose comparator IC. It operates with a supply voltage range of 2V to 36V and comes in an 8-DFN package.
✓ Total Stock: 20,939 pcs
$ Price Range: $0.36

TS391IQ2T Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
11,939 pcs
On Request
11939 pcs On Request 1 On Request On Request 1346+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS391IQ2T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current - Quiescent (Max)
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Elements
Operating Temperature
Output Type
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

TS391IQ2T Description

Short technical summary and product information.

The STMicroelectronics TS391IQ2T is a general purpose comparator designed for a wide range of applications. It features a single element with an output type supporting CMOS, DTL, ECL, Open-Collector, and TTL logic levels. The device operates with a flexible supply voltage range, accommodating both single and dual supplies from 2V to 36V and ±1V to ±18V, respectively.



Key electrical characteristics include a maximum input offset voltage of 1mV at 5V and a maximum quiescent current of 500µA. The typical output current is 16mA at 5V, and the maximum input bias current is 0.25µA at 5V. The comparator is built to withstand operating temperatures from -40°C to 125°C.

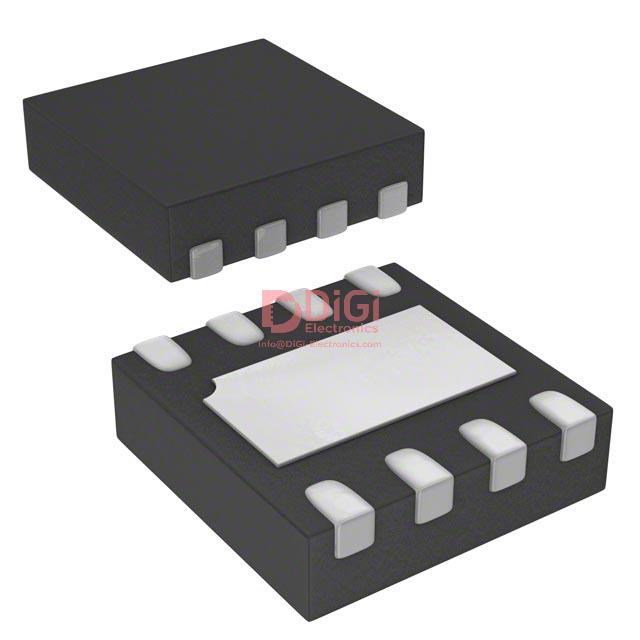

Packaged in an 8-DFN (2x2) format with an exposed pad, the TS391IQ2T is suitable for surface mount applications. Its robust design and versatile specifications make it a reliable choice for signal comparison tasks in various electronic circuits.

TS391IQ2T Quick Information

Product Type: Comparator
Canonical Name: TS391IQ2T General Purpose Comparator
Subcategory: General Purpose Comparator

TS391IQ2T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS391IQ2T Estimated Pricing

Qty Low High
1+ $0.36 $0.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS391IQ2T Features

  • General purpose comparator IC
  • Wide supply voltage range
  • Low input offset voltage
  • Multiple output logic types supported
  • Surface mount 8-DFN package

TS391IQ2T Applications

  • Signal comparison circuits
  • Logic level translation
  • Threshold detection
  • Power supply monitoring

TS391IQ2T FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the TS391IQ2T comparator?

The TS391IQ2T operates with a supply voltage range of 2V to 36V for single supplies and ±1V to ±18V for dual supplies.

What is the maximum input offset voltage of the TS391IQ2T?

The maximum input offset voltage for the TS391IQ2T is 1mV at 5V.

What is the operating temperature range for this comparator?

The TS391IQ2T can operate in temperatures ranging from -40°C to 125°C.

What package type is the TS391IQ2T comparator supplied in?

The TS391IQ2T is supplied in an 8-DFN (2x2) package, also referred to as 8-U or 8-UFDFN Exposed Pad.

What output types does the TS391IQ2T support?

The TS391IQ2T supports CMOS, DTL, ECL, Open-Collector, and TTL output types.
