TS2596CM550 RNG The TS2596CM550 RNG is a switching voltage regulator from Taiwan Semiconductor. It provides a fixed 5V output at up to 3A current.
Mfr Part #:

TS2596CM550 RNG

Available from 1 distributors
Mfr Name: Taiwan Semiconductor
Taiwan Semiconductor
The TS2596CM550 RNG is a switching voltage regulator from Taiwan Semiconductor. It provides a fixed 5V output at up to 3A current.
✓ Total Stock: 20 pcs
$ Price Range: $1.08

TS2596CM550 RNG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TS2596CM550 RNG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Output Voltage
Quiescent Current
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

TS2596CM550 RNG Description

Short technical summary and product information.

The TS2596CM550 RNG is a step-down (buck) switching voltage regulator manufactured by Taiwan Semiconductor. It is designed to provide a stable 5V output voltage with a maximum output current of 3A. The device operates over an input voltage range of 4.5V to 40V and features a switching frequency of 150KHz.

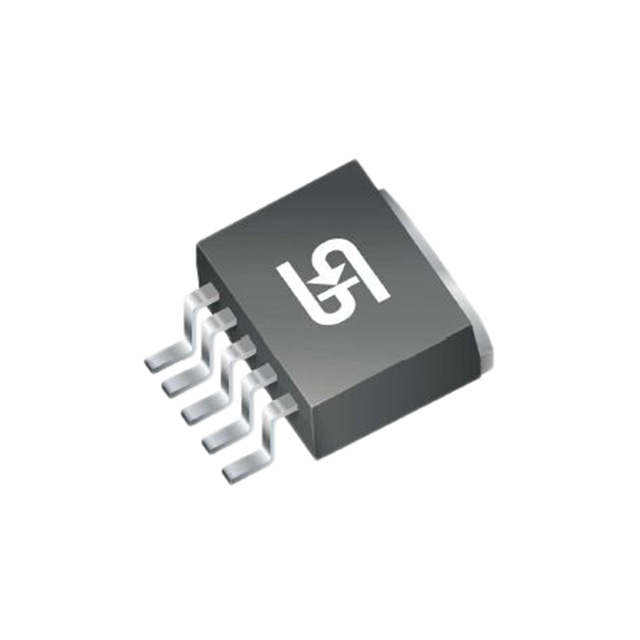

This regulator is suitable for applications requiring efficient voltage conversion. It comes in a TO-263-5 package and is designed for surface mount installation. The operating temperature range is -40°C to 125°C (TJ).



Key electrical characteristics include a fixed output voltage, positive output configuration, and a non-synchronous rectifier topology. The quiescent current is rated at 5mA.

TS2596CM550 RNG Quick Information

Product Type: Switching Voltage Regulator
Canonical Name: TS2596CM550 RNG Switching Voltage Regulator
Subcategory: PMIC - Power Management ICs

TS2596CM550 RNG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TS2596CM550 RNG Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

TS2596CM550 RNG Features

  • Provides a fixed 5V output voltage.
  • Supports a maximum output current of 3A.
  • Operates from 4.5V to 40V input.
  • Features a 150KHz switching frequency.
  • Surface mount TO-263-5 package.

TS2596CM550 RNG Applications

  • Ideal for power supply applications.
  • Suitable for battery-powered devices.
  • Used in embedded system designs.
  • Efficient voltage regulation needs.

TS2596CM550 RNG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TS2596CM550 RNG?

The output voltage is fixed at 5 V.

What is the input voltage range?

The input voltage range is 4.5 V to 40 V.

What is the maximum output current?

3 A.

What is the switching frequency?

150 KHz.

What is the operating temperature range?

-40°C to 125°C.

What package is available?

The part is in a TO-263-5 (D2PAK) surface-mount package.

Is the regulator synchronous?

No, it is a non-synchronous buck converter.
