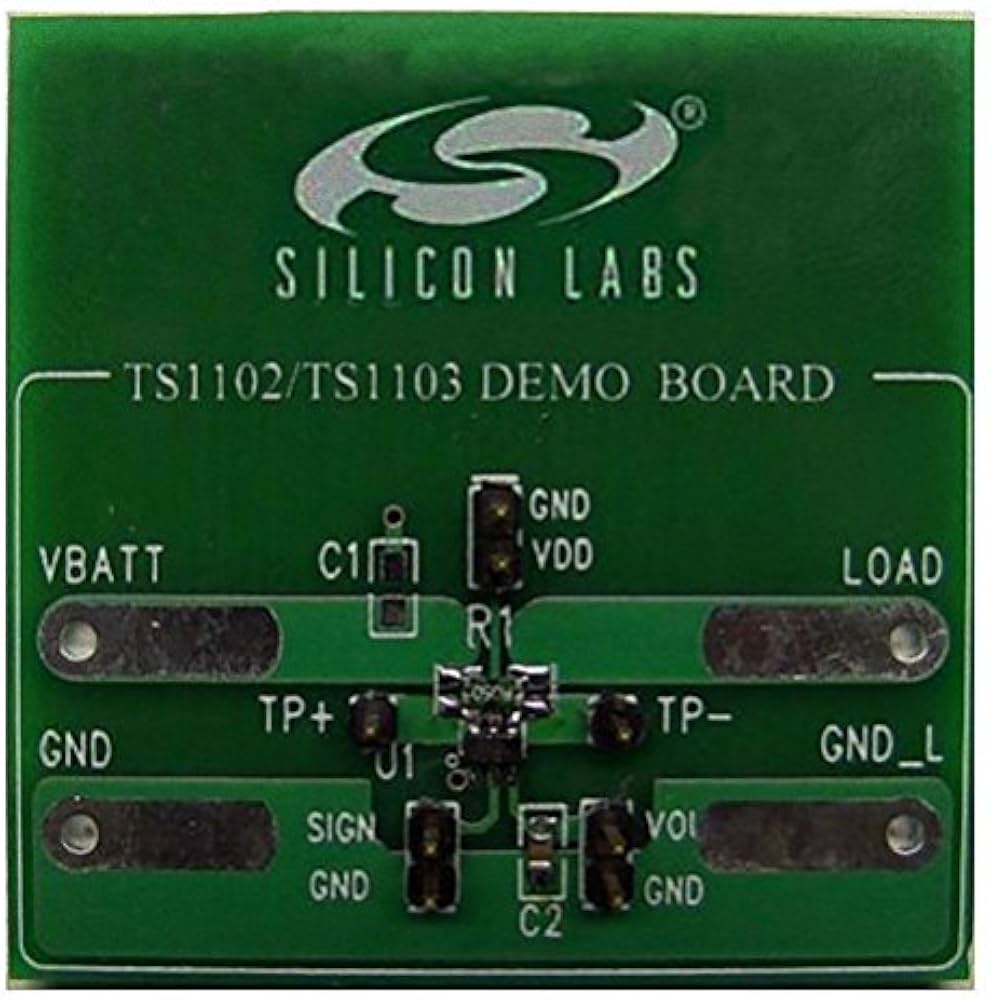

The TS1102-50DB is a fully populated evaluation board from Silicon Labs designed for the TS1102-50 unidirectional current sense amplifier. This board allows engineers to evaluate the performance of the TS1102-50 IC, which features a gain of 50 V/V and a bandwidth of 6 kHz. The amplifier operates from a single supply voltage ranging from 2V to 27V and consumes only 680 nA of supply current, making it suitable for low-power applications.
The TS1102-50 provides a single-ended output and is optimized for cost-sensitive current sensing applications. Key electrical characteristics include a maximum input offset voltage of 300 µV and a maximum gain error of 0.6%. The board is fully populated with the necessary components and is ready for use.
Typical applications include power management systems, portable/battery-powered systems, smart chargers, battery monitoring, overcurrent and undercurrent detection, remote sensing, and industrial control. The evaluation board is supplied as a board only and is RoHS3 compliant.
The evaluation board operates from a supply voltage of 2V to 27V.
Yes, it is RoHS3 compliant.
The gain is 50 V/V.
The bandwidth is 6 kHz.
The supply current is 680 nA.
It provides a single-ended output.
It is a single-channel amplifier.
