| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 1301+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | 1301+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Output Current | |
| Package / Case | |
| Slew Rate |
The TS1002IM8T from Silicon Labs is a dual, single-supply, precision CMOS operational amplifier designed for ultra-long-life battery-powered applications. It operates from a low supply voltage range of 0.65V to 2.5V, consuming a typical supply current of just 0.6µA per amplifier.
Key features include a typical offset voltage of 0.5mV, a typical input bias current of 25pA, and rail-to-rail input and output stages. The amplifier is unity gain stable and offers a typical gain bandwidth product of 4kHz.
This op amp is suitable for low-voltage signal processing, nanopower active filters, wireless remote sensors, and portable instrumentation. Its low power consumption and low operating voltage make it an excellent choice for applications where extended equipment operating time is critical.

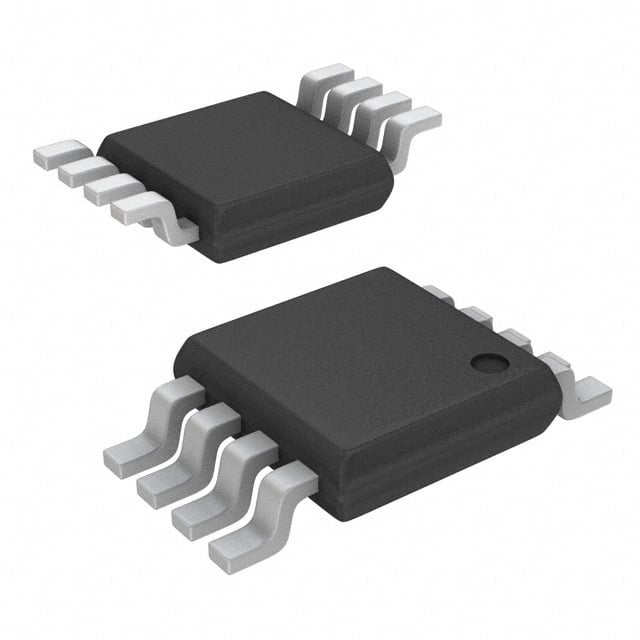

The TS1002IM8T is available in an 8-pin MSOP surface-mount package, designed for PCB space savings. It is specified for operation over an industrial temperature range of -40°C to +85°C.
It operates from 0.65V to 2.5V.
The typical supply current is 0.6µA per amplifier, or 1.2µA for both channels.
The typical offset voltage is 0.5mV (500µV).
The gain bandwidth product is 4kHz typical.
The operating temperature range is -40°C to 85°C (industrial).
It comes in an 8-MSOP surface mount package.
The typical input bias current is 25pA.
