| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

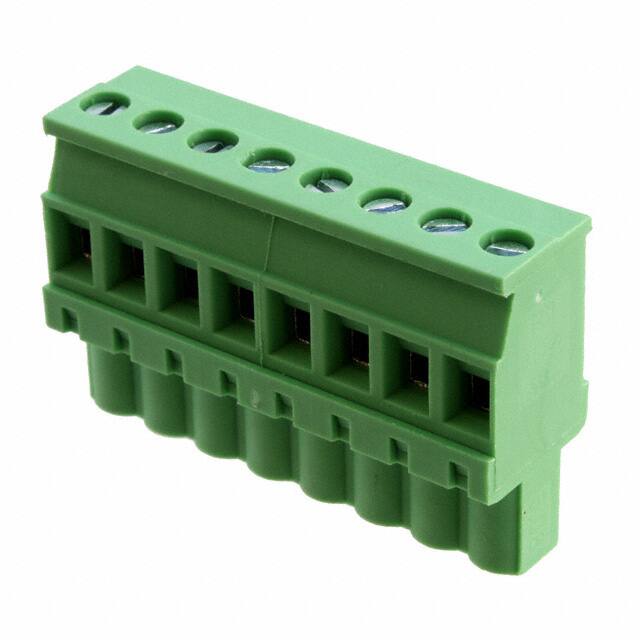

The TS08515B0000G is an 8-position terminal block plug manufactured by Amphenol Anytek. It features a 5.08mm pitch and uses a screw - rising cage clamp termination style for secure wire connections. The plug accepts wire sizes from 0.34 to 2.5mm² and is designed for free hanging (in-line) mounting.
Electrical ratings include 300V voltage and 12A current. The operating temperature range spans -40°C to 115°C, making it suitable for a variety of industrial and commercial environments. The contact mating finish is tin, and the housing is green.
This plug includes retention latches on the non-wire side for added mechanical security. The plug wire entry angle is 270°, providing flexibility in wiring orientation.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
| 10+ | $2.45 | $2.45 |
| 25+ | $2.14 | $2.14 |
| 50+ | $1.95 | $1.95 |
| 80+ | $1.77 | $1.77 |
| 240+ | $1.51 | $1.51 |
| 1,040+ | $1.35 | $1.35 |
| 5,040+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
5.08mm.
300V and 12A.
Screw - Rising Cage Clamp.
Free Hanging (In-Line).
0.34 to 2.5mm².
-40°C to 115°C.
