| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Package Style | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC |

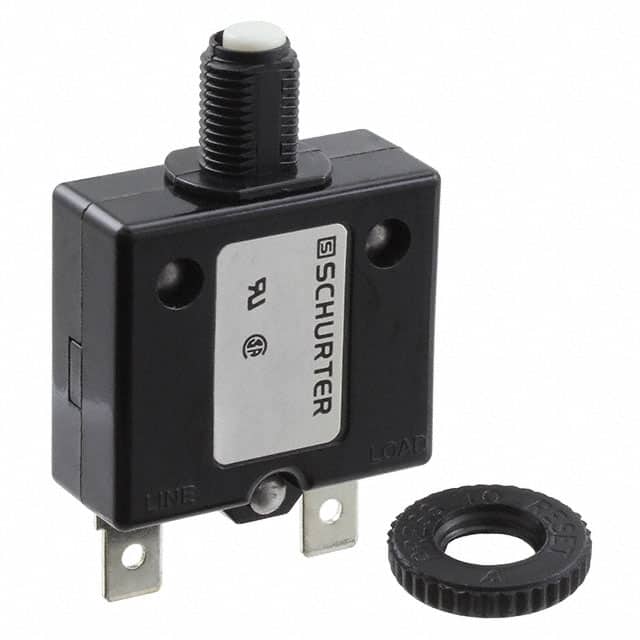

The TS-701-HT-3 is a single-pole thermal circuit breaker from Schurter Inc., rated for 3A continuous current at 250VAC or 50VDC. It features a push-to-reset actuator and is designed for panel mount installation with a threaded neck. The breaker provides reliable overcurrent protection for equipment and is approved under CSA C22.2 and UL1077 standards.
This thermal breaker uses a bimetal element that trips when current exceeds the rating, automatically disconnecting the circuit. After cooling, it can be manually reset by pushing the actuator. The 1-pole configuration is suitable for branch circuit protection in power supplies, industrial controls, and other electronic equipment requiring overcurrent protection up to 3A.
The panel mount design with threaded neck allows easy installation in a panel cutout. The compact form factor fits standard mounting holes. The product is marked as RoHS3 Compliant and REACH unaffected, though these compliance claims are unverified.
250VAC and 50VDC.
3A.
Thermal circuit breaker.
1 pole.
Panel mount.
Push to reset.
CSA C22.2 and UL1077.
Listed as RoHS3 Compliant but unverified.
