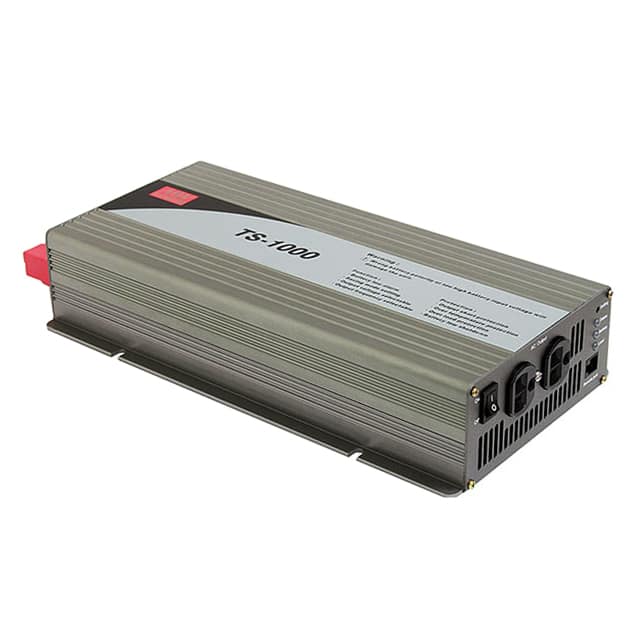

The Mean Well USA TS-1000-224B is a robust 1000W DC to AC power inverter designed for reliable power conversion. It features a true sine wave output with total harmonic distortion (THD) below 3.0%, ensuring clean power for sensitive electronics. The inverter operates with an input voltage range of 21V to 30V DC and provides a stable 230VAC output.
Key electrical specifications include a high surge power capability of up to 3000W and an efficiency rating of up to 91%. For enhanced usability, it incorporates built-in remote ON-OFF control and a thermostatically controlled cooling fan for optimal thermal management. Protections against short circuit, overload, and over voltage are integrated for safety and longevity.
This inverter supports RS-232 communication for remote monitoring and control, though a separate communication cable is required. The AC output voltage is adjustable across a range of 100-240VAC via a front panel setting button. Applications include home appliances, power tools, office equipment, portable devices, vehicles, and yachts.
With dimensions of 13.58 x 7.24 x 2.75 inches and a weight of 9.47 lbs, the TS-1000-224B is suitable for various installation environments. It is approved to EN60950-1 safety standards and meets EN55022 Class A EMC standards. The unit comes with a 3-year warranty.
| Qty | Low | High |
|---|---|---|
| 1+ | $391.85 | $391.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TS-1000-224B inverter provides a 230VAC output voltage.
The power rating of the TS-1000-224B is 1000W.
Yes, the TS-1000-224B features a true sine wave output with THD less than 3.0%.
The input voltage range for the TS-1000-224B is 21V to 30V DC.
The TS-1000-224B includes protections for short circuit, overload, and over voltage.
The operating temperature is 0 to 40℃ at 100% load and up to 60℃ at 50% load.
The TS-1000-224B comes with a 3-year warranty.
