| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,035 pcs
|
3035 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| ESD Protection | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Texas Instruments TRS3223IDB is a multichannel RS232 line driver/receiver designed for 3-V to 5.5-V VCC supply operation. It meets or exceeds the requirements of TIA/EIA-232-F and ITU v.28 standards, providing ±15 kV ESD protection on bus pins.
This transceiver operates at data signaling rates up to 250 kbit/s and features two drivers and two receivers. It accepts 5-V logic input with a 3.3-V supply. The device is suitable for battery-powered systems, PDAs, notebooks, laptops, palmtop PCs, and hand-held equipment.

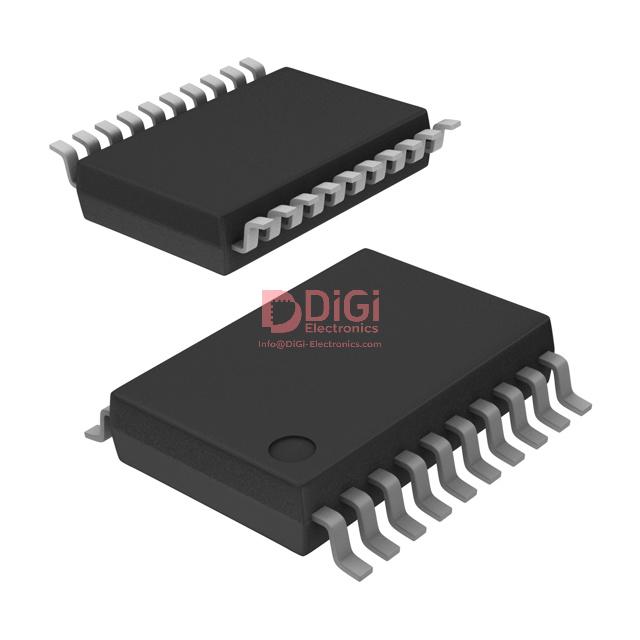

The TRS3223IDB is available in a 20-SSOP surface mount package. It operates within a temperature range of -40°C to 85°C. The device offers flexible power management options, including an auto-powerdown feature that reduces supply current to 1 µA typical when the serial port is inactive.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TRS3223IDB operates with a supply voltage range of 3V to 5.5V.
The TRS3223IDB is available in a 20-SSOP package.
The TRS3223IDB operates within a temperature range of -40°C to 85°C.
The TRS3223IDB is RoHS3 Compliant.
The TRS3223IDB supports data rates up to 250kbps.
Yes, the TRS3223IDB features ±15kV ESD protection on bus pins.
