| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
309 pcs
|
309 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

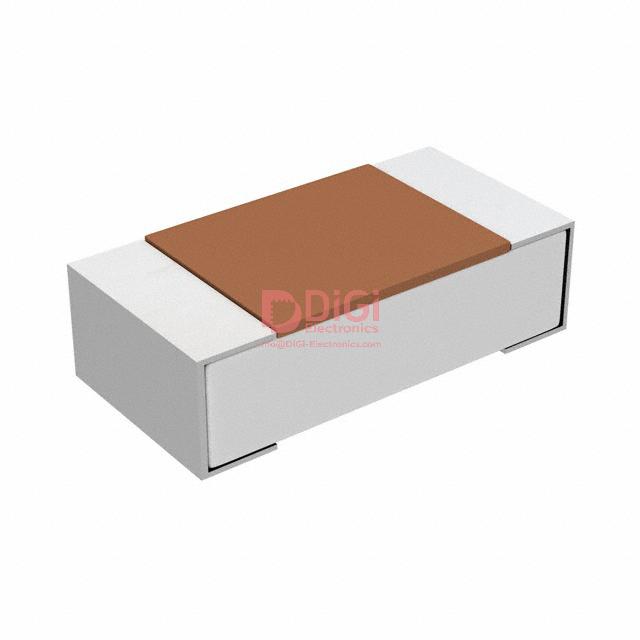

This ROHM Semiconductor TRR03EZPF2053 is a surface mount chip resistor from the TRR series, designed for enhanced reliability in sulfur-containing environments. It offers a resistance of 205 kΩ with a tight tolerance of ±1% and a power rating of 0.1W (1/10W).
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C. Its thick film composition and anti-sulfur feature make it suitable for demanding applications.
The component is packaged in a 0603 (1608 Metric) case, measuring 1.60mm in length and 0.80mm in width, with a height of 0.55mm. It is designed with 2 terminations.
This series corresponds to AEC-Q200 qualification, indicating its suitability for automotive applications. The TRR series is highly recommended for industrial and power supply applications where exposure to sulfur gas is a concern.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 205 kΩ.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±100ppm/°C.
The resistor is in a 0603 (1608 Metric) package.
Yes, it features anti-sulfur construction for increased reliability.
