Mfr Part #:

TRP-20INT-6-B

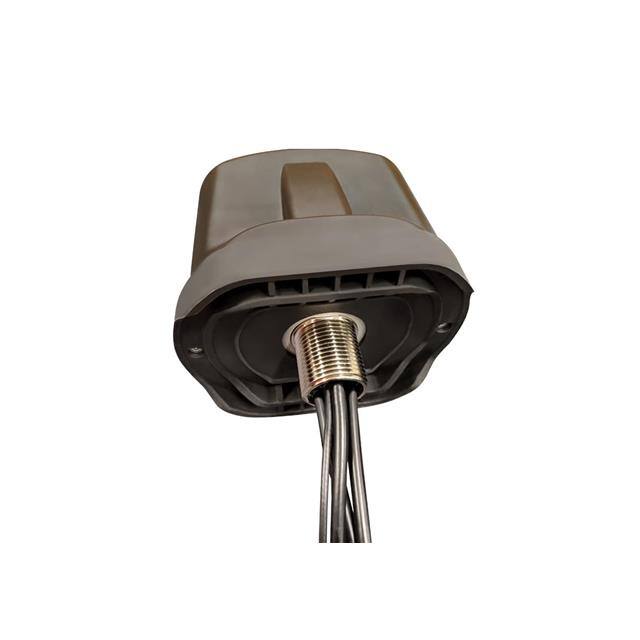

Name: TRP-20INT-6-B
Brand: PCTEL, Inc.
SKU: TRP-20INT-6-B

Mfr Name: PCTEL, Inc.

Description:

RF ANT 657.5MHZ DOME RP-SMA PAN

Stock on Request

TRP-20INT-6-B Description

Short technical summary and product information.

RF ANT 657.5MHZ DOME RP-SMA PAN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

TRP-20INT-5-B

PCTEL, Inc.

RF ANT 657.5MHZ DOME RP-SMA PAN

Category	RF Antennas
Manufacturer Name	PCTEL, Inc.
Antenna Type	Dome
Applications	2G, 3G, 5G, Bluetooth, Cellular, GNSS, GPS, ISM, LoRa, LPWAN, LTE, Wi-Fi
Features	Cable - 5.1816m
Frequency (Center	657.5MHz, 750MHz, 892MHz, 1.5865GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.6GHz, 5.4GHz, 5.55GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 698MHz ~ 802MHz, 824MHz ~ 960MHz, 1.565GHz ~ 1.608GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 5.9GHz, 5.15GHz ~ 5.95GHz
Gain	4dBi, 5dBi, 5.5dBi, -2dBic, 3dBic, 6.5dBi, 9.4dBi, 8.8dBi, 6.8dBi, 9.4dBi, 10.1dBi
Height (Max)	3.460" (87.88mm)
Mounting Type	Panel Mount
Number of Bands	10
Power	25 W
RF Family	Cellular, Navigation, WiFi
Termination	RP-SMA (1), SMA (2)
VSWR	1.2, 1.4, 1.5, 1.6, 1.8, 2, 2.2
