| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Lead Style | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage |

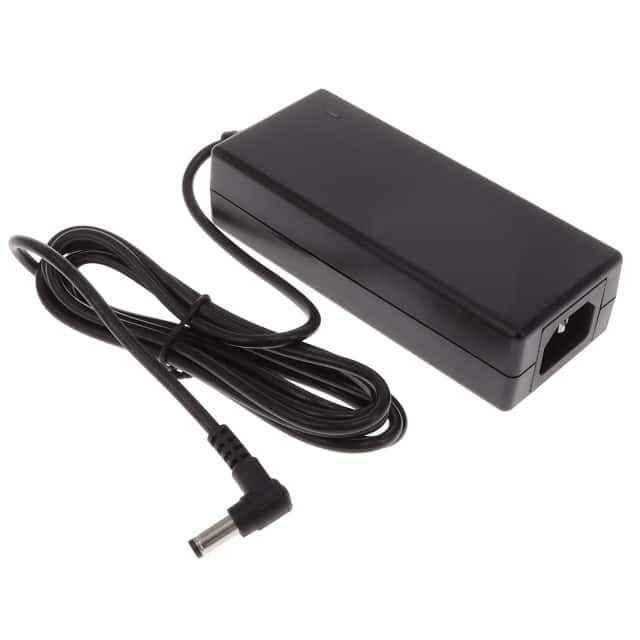

The Cincon TRH70A190-01E03 VI is an AC/DC external desktop adapter designed for commercial ITE applications. It delivers a stable 19V output at a maximum current of 3.7A, with a total power rating of 70W.
This adapter features an input voltage range of 90 to 264 VAC and complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. It includes an IEC 320-C14 input connector and a common Barrel Plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm).
Operating within a temperature range of -20°C to 70°C, the TRH70A190-01E03 VI has dimensions of 120.0mm x 52.0mm x 31.0mm. It adheres to international safety standards including 60950-1 and 62368-1, and carries approvals from CE, cULus, FCC, GS, PSE, and TUV.
The input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to 70°C.
The product is packaged in a box.
It provides 19V DC at 3.7A (70W).
It meets Level VI and CoC Tier 2 efficiency standards.
The output connector is a barrel plug right-angle, 2.1mm inner diameter by 5.5mm outer diameter, 12.0mm length.
It complies with safety standards 60950-1 and 62368-1.
