| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

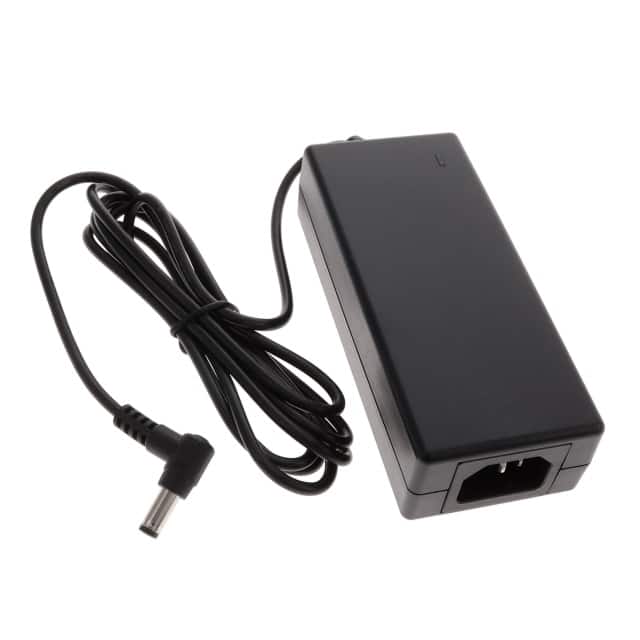

This TRH50A480-01E03 VI AC/DC desktop adapter from Cincon Electronics Co. LTD provides 50W of power with a 48V output and a maximum current of 1.05A. It is designed for ITE (Commercial) applications and features an input voltage range of 90-264 VAC.
The adapter complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. It operates within a temperature range of -20°C to 70°C. The input connector is an IEC 320-C14, and the output connector is a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 12.0mm).
Mechanical dimensions are 120.0mm x 52.0mm x 31.0mm. The adapter utilizes a positive center polarization and requires a cord, which is sold separately. It adheres to international standards including 60950-1 and 62368-1, and carries approvals from CE, cULus, FCC, GS, PSE, and TUV.
The TRH50A480-01E03 VI adapter has an output voltage of 48V and a maximum output current of 1.05A.
The TRH50A480-01E03 VI adapter has a power rating of 50W.
The TRH50A480-01E03 VI adapter meets Efficiency Level VI and CoC Tier 2.
The operating temperature range for the TRH50A480-01E03 VI adapter is -20°C to 70°C.
The dimensions of the TRH50A480-01E03 VI adapter are 120.0mm in length, 52.0mm in width, and 31.0mm in height.
The TRH50A480-01E03 VI adapter features an IEC 320-C14 input connector and a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm output connector.
The TRH50A480-01E03 VI adapter complies with Standard Number 60950-1 and 62368-1.
