| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

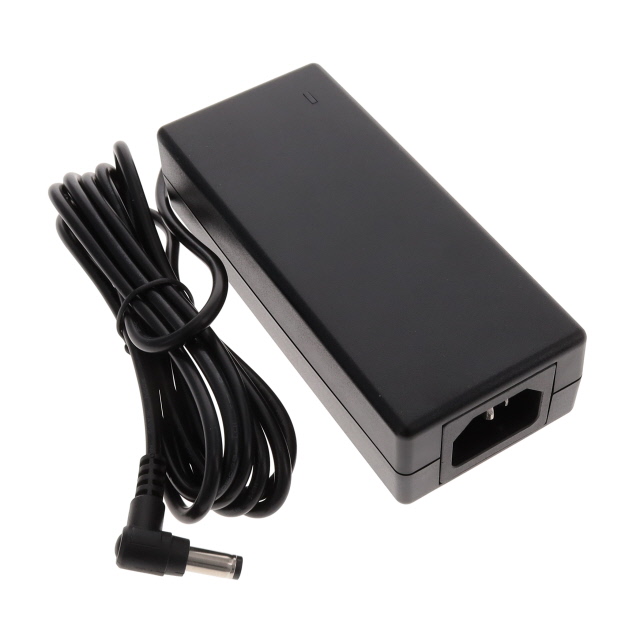

The Cincon TRH50A190-01E03 VI is a 50W AC/DC external desktop adapter designed for commercial ITE applications. It provides a stable 19V output at a maximum current of 2.65A.
This adapter meets stringent efficiency requirements, achieving Level VI and CoC Tier 2 compliance. It operates within a wide input voltage range of 90 to 264 VAC and features a low no-load power consumption of 150mW maximum. The operating temperature range is from -20°C to 70°C.
Designed for versatility, it utilizes an IEC 320-C14 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm). The adapter's dimensions are 120.0mm x 52.0mm x 31.0mm. It is supplied in box packaging and adheres to RoHS3 standards.
The TRH50A190-01E03 VI has an output voltage of 19V and a maximum output current of 2.65A.
The TRH50A190-01E03 VI adapter has a power rating of 50W.
The input voltage range for the TRH50A190-01E03 VI is 90 to 264 VAC.
The TRH50A190-01E03 VI meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range for the TRH50A190-01E03 VI is -20°C to 70°C.
The dimensions of the TRH50A190-01E03 VI are 120.0mm x 52.0mm x 31.0mm.
The TRH50A190-01E03 VI is RoHS3 Compliant.
