| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |
This Cincon Electronics Co. LTD TRH50A180-01E03 VI is a 50W AC/DC desktop power supply designed for ITE (Commercial) applications. It provides a stable 18V output with an input current of 2.8A and operates within a temperature range of -20°C to 70°C.
The power supply features an IEC 320-C14 input connector and a Barrel Plug R/A output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. It adheres to international safety standards including 60950-1 and 62368-1, and has received approvals from CE, cULus, FCC, GS, PSE, and TUV.

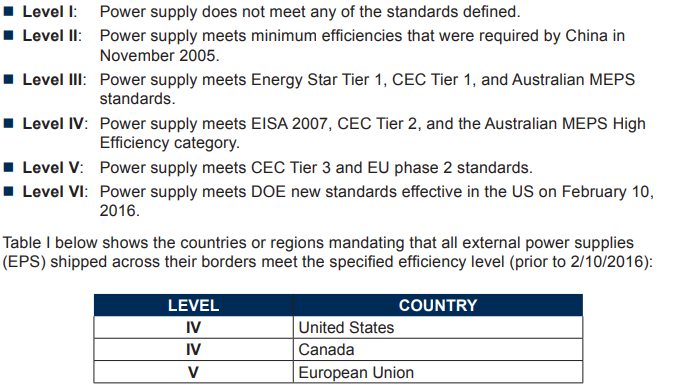

With a compact form factor measuring 120.0mm x 52.0mm x 31.0mm, it is suitable for various desktop setups. The unit boasts a low no-load power consumption of 150mW (Max) and meets Efficiency Level VI and CoC Tier 2 requirements, making it an energy-efficient solution for international use.
18V DC.
-20°C to 70°C.
Level VI and CoC Tier 2.
Barrel plug, right angle, 2.1mm inner diameter by 5.5mm outer diameter, 12.0mm length.
CE, cULus, FCC, GS, PSE, TUV.
150mW maximum.
Desktop (Class I).
