| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

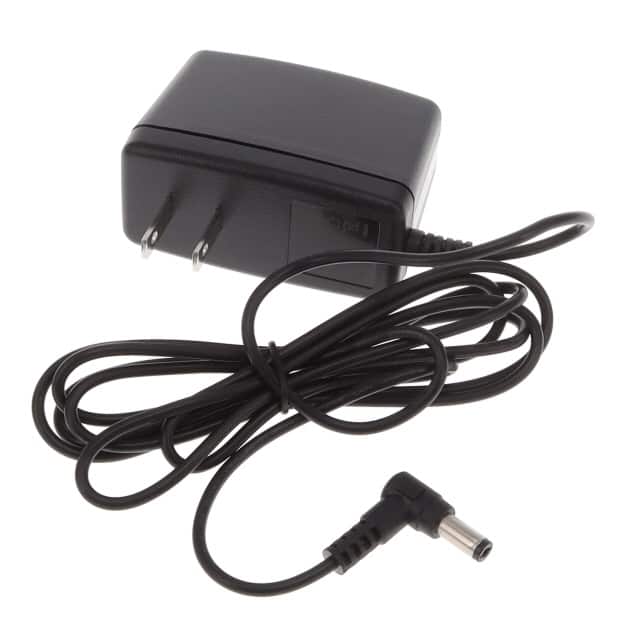

This AC/DC wall mount adapter from Cincon Electronics, model TRH25150-A-01E03 VI, provides a 15V output with a maximum power of 25W. It is designed for ITE (Commercial) applications and features a NEMA 1-15P input connector for North American regions.
The adapter operates within a temperature range of -20°C to 60°C and consumes less than 75mW at no load, complying with Level VI and CoC Tier 2 efficiency standards. Its dimensions are 72.0mm x 35.0mm x 52.0mm, with a cord length of 1.80 meters.
Compliance is indicated by CE, cULus, GS, and TUV approvals, adhering to standard 60950-1. The unit is RoHS3 compliant and has an MSL rating of 1.
Input is 100-240 VAC; output is 15V DC at 1.67A (25W).
-20°C to 60°C.
Wall mount (Class II).
Level VI and CoC Tier 2.
75mW.
NEMA 1-15P input connector with a 1.80m (70.9") cord.
CE, cULus, GS, and TUV, referenced to standard 60950-1.
