| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

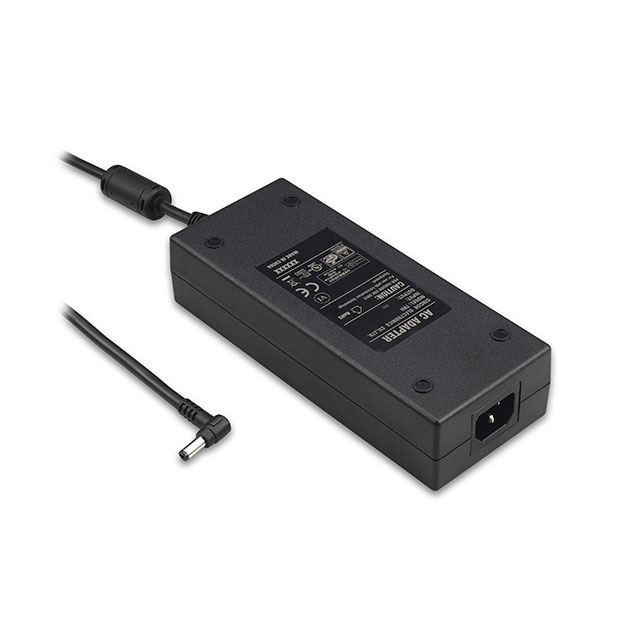

This TRH100A240-11E12 VI adapter from Cincon Electronics Co. LTD is designed for ITE (Commercial) applications. It provides a stable 24V output at a maximum current of 4.17A, delivering a total power of 100W.
The adapter features a universal input voltage range of 90 to 264 VAC and utilizes an IEC 320-C14 input connector, making it suitable for international use. It complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency.
With a compact desktop form factor (Class I), the dimensions are 142.0mm x 58.0mm x 37.0mm. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. The operating temperature range is -30°C to 70°C.
The adapter requires a separate input cord and is packaged in a box.
The input voltage range is 90 to 264 VAC.
The output voltage is 24V and the maximum output current is 4.17A.
It meets Level VI and CoC Tier 2 efficiency standards.
It uses a barrel plug with 2.1mm I.D. and 5.5mm O.D.
The operating temperature range is -30°C to 70°C.
It is a desktop (Class I) adapter.
