| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

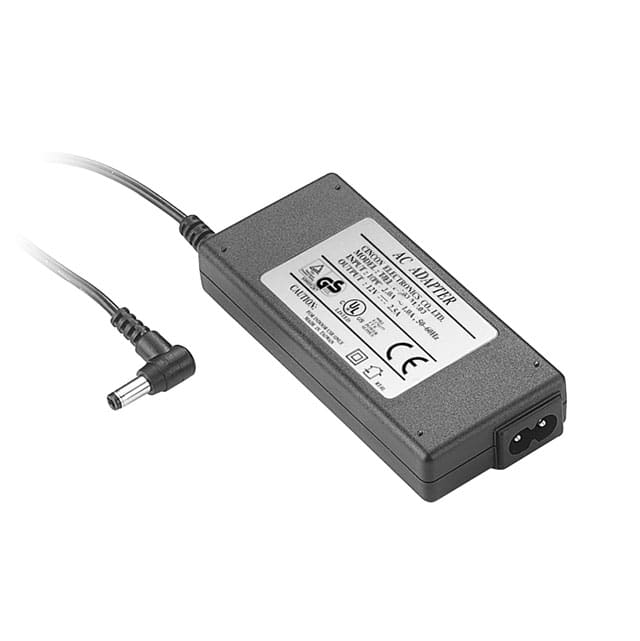

This Cincon Electronics Co. LTD TRG36A15-11E03 VI is a 36W AC/DC desktop adapter designed for ITE commercial applications. It features a 15V output voltage and a current rating of 2.4A, delivering a total of 36 watts.
The adapter complies with Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. It includes an IEC 320-C8 input connector and a barrel plug R/A output connector with positive center polarization. The operating temperature range is -20°C to 60°C.
With dimensions of 111.0mm x 51.0mm x 22.5mm, this desktop adapter is compact. It has a low no-load power consumption of 75mW maximum. The unit is approved by CE, cULus, FCC, GS, PSE, and TUV, indicating compliance with international safety and performance standards. It is designed for international use and operates with a cord that is sold separately, with a specified cord length of 1.80m.
The adapter provides a 15V output voltage and a current of 2.4A.
The adapter has a power rating of 36W.
It meets Efficiency Level VI and CoC Tier 2 standards.
The dimensions are 111.0mm in length, 51.0mm in width, and 22.5mm in height.
The adapter can operate between -20°C and 60°C.
It features an IEC 320-C8 input connector and a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm output connector.
