| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

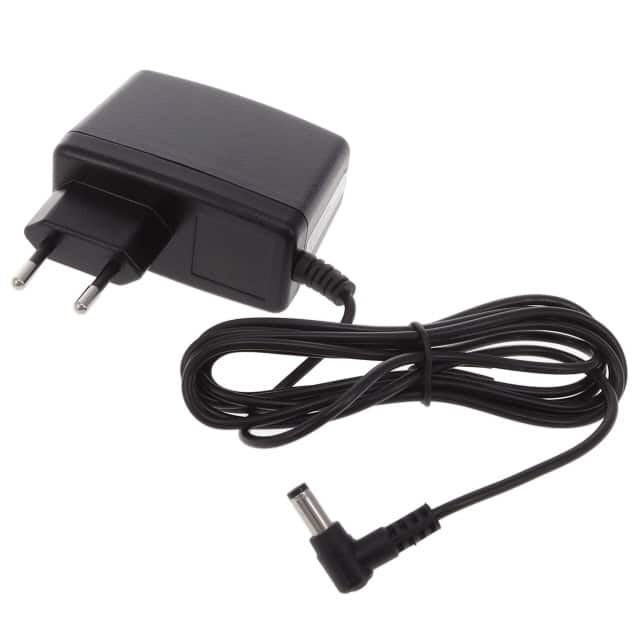

The Cincon TRG1524-E-01E03 VI is a 15-watt AC/DC switching adapter designed for ITE applications. It offers a universal input voltage range of 90-264Vac and a fixed output voltage of 24Vdc with a maximum current of 0.63A.
This adapter boasts high efficiency, up to 86%, and a low no-load power consumption of less than 75mW, meeting CoC Tier 2 and DoE Level VI standards. It operates within a wide temperature range of -20°C to 60°C and can function at altitudes up to 5000 meters.
The unit is built with safety and reliability in mind, featuring over-voltage protection and continuous short-circuit protection. It is approved by multiple agencies including CE, cULus, FCC, GS, PSE, and TUV, and meets EN55032 Class B and CISPR/FCC Class B emissions standards. The adapter is housed in a Class II, wall-mount form factor with a fixed blade input connector for Europe and a 1.80m cord length.
Key specifications include a 72.0mm length, 35.0mm width, and 52.0mm height. This adapter is suitable for various ITE (Commercial) applications requiring a stable 24V power source.
The input voltage range is 90-264Vac at 47-63Hz.
The output is 24Vdc at 0.63A (15W).
The operating temperature range is -20°C to 60°C.
Dimensions are 72.0mm x 35.0mm x 52.0mm (2.84" x 1.38" x 2.05").
Typical efficiency is up to 86% at 230Vac and 75% load.
No-load power consumption is less than 75mW.
Maximum operating altitude is 5000m.
