| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

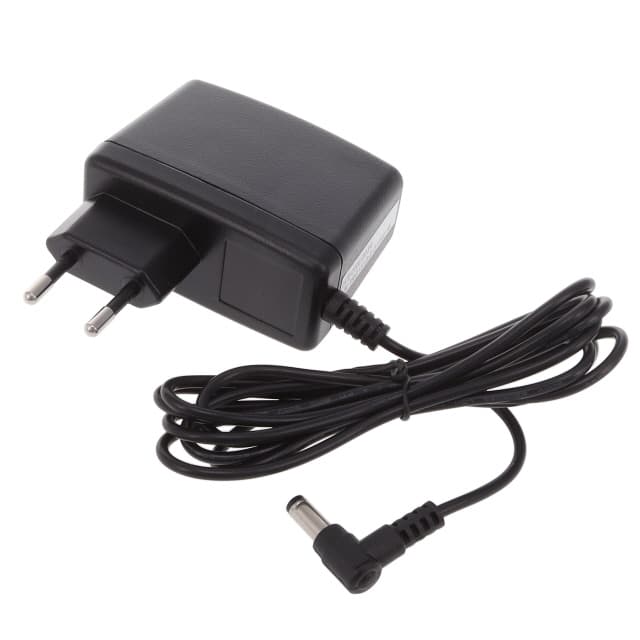

The Cincon Electronics TRG1518-E-01E03 VI is a 15-watt AC/DC switching adapter designed for ITE applications. It offers a universal input voltage range of 90 to 264Vac, making it suitable for global use.
This adapter provides a stable 18V output at 0.83A, with a power rating of 15W. It boasts high efficiency up to 86% and meets stringent energy standards like CoC Tier 2 and DoE Level VI. The device operates within a wide temperature range of -20°C to 60°C and has an operating altitude of up to 5000m.
Designed as a Class II, wall-mount unit, the TRG1518-E-01E03 VI features a fixed blade input connector for European regions and a cord length of 1.80 meters. Its compact dimensions are 72.0mm x 35.0mm x 52.0mm. The adapter includes over-voltage protection and continuous short-circuit protection for enhanced reliability.
The input voltage range is 90-264Vac.
The output voltage is 18Vdc (17.64-18.3V range) and the maximum output current is 0.83A.
The operating temperature range is -20°C to 60°C.
It meets Level VI and CoC Tier 2 efficiency standards.
The form factor is wall mount with a fixed European blade input connector.
The cord length is 1.80m (70.9 inches).
The maximum no load power consumption is less than 75mW.
