| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

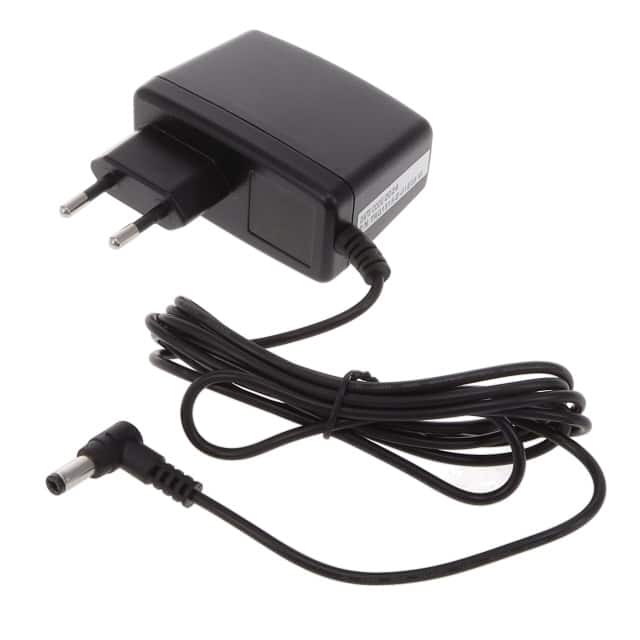

The Cincon TRG1515-E-01E03 VI is a 15 Watt AC/DC switching adapter designed for ITE applications. It features a universal input voltage range of 90-264Vac and delivers a stable 15Vdc output at 1A.
This adapter boasts high efficiency up to 86% and complies with DoE Level VI and CoC Tier 2 energy standards. It operates within a wide temperature range of -20°C to 60°C and has a low no-load power consumption of less than 75mW. The unit is designed as a Class II, wall-mount adapter with a fixed blade input connector for European regions.
Key electrical specifications include a ±2% voltage accuracy, 100mV ripple and noise, ±1% line regulation, and ±2% load regulation. The physical dimensions are 72.0mm x 35.0mm x 52.0mm, and it includes a 1.80m cord.
Safety approvals include CE, cULus, FCC, GS, PSE, and TUV, with compliance to IEC/EN/UL 62368-1 standards. It also meets EN55032 Class B and CISPR/FCC Class B emissions standards.
The output voltage is 15Vdc with a maximum output current of 1A, providing 15W of power.
The universal input voltage range is 90-264Vac at 47-63Hz.
The operating temperature range is -20°C to 60°C.
It meets Level VI and CoC Tier 2 efficiency standards with a typical efficiency of 86% at 230Vac and 75% load.
The no-load power consumption is less than 75mW.
The dimensions are 72.0mm (length) x 35.0mm (width) x 52.0mm (height).
