| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

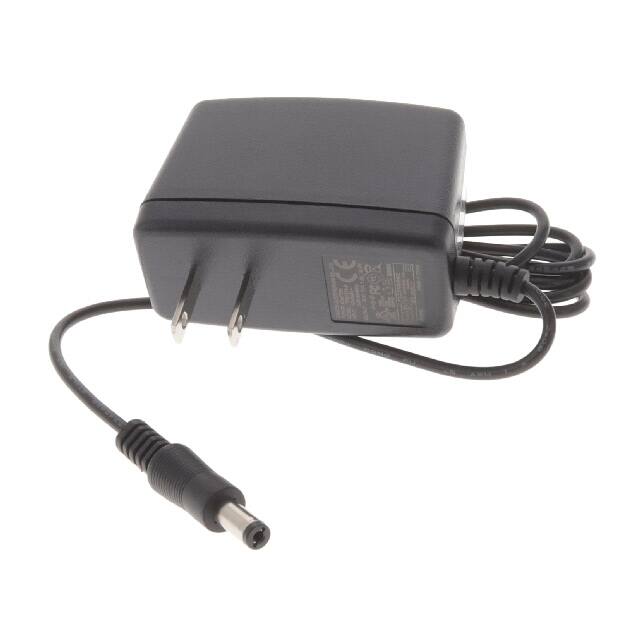

The Cincon TRG1515-A-11E03 VI is a 15 Watt AC/DC switching adapter designed for ITE (Commercial) applications. It offers a universal input voltage range of 90-264Vac and a stable 15Vdc output at 1A, delivering a total of 15W.
This adapter boasts high efficiency up to 86% and a low no-load power consumption of less than 75mW, meeting DoE Level VI and CoC Tier 2 standards. It operates within a wide temperature range of -20°C to 60°C and can function at altitudes up to 5000m.
Key features include Over Voltage Protection (OVP) and Continuous Short Circuit Protection. The unit is housed in a Class II, wall-mount form factor with a NEMA 1-15P input connector and a standard 2.1mm x 5.5mm barrel plug output connector. The integrated cord is 1.80 meters long with positive center polarization.
The input voltage range is 90-264Vac.
The output is 15Vdc at up to 1A (15W).
Typical efficiency is 86% at 230Vac and 75% full load.
The operating temperature range is -20°C to 60°C.
Dimensions are 72.0mm x 35.0mm x 52.0mm (2.84" x 1.38" x 2.05").
It uses a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 12.0mm, positive center polarity.
