| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Halogen Free | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

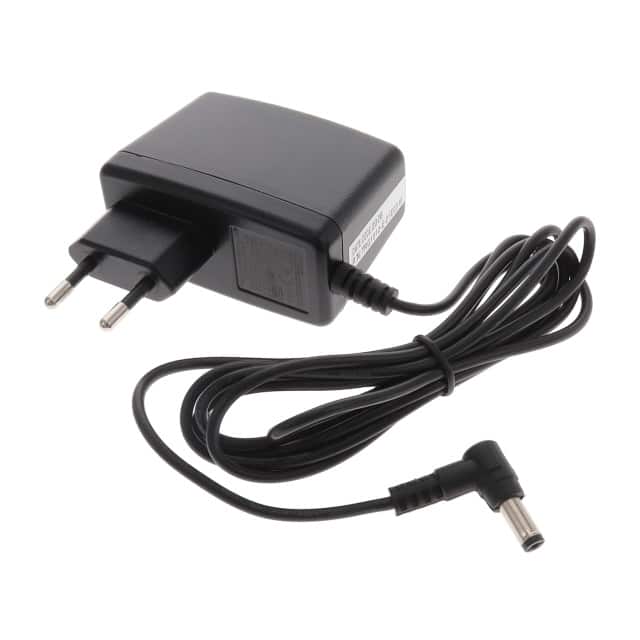

The Cincon TRG1512-E-01E03 VI is a 15-watt AC/DC I.T.E. switching adapter designed for wall mounting. It offers a universal input range of 90-264Vac and a stable 12Vdc output at 1A, delivering up to 12W of power.
This adapter boasts high efficiency, reaching up to 86%, and a low no-load power consumption of less than 75mW, meeting CoC Tier 2 and DoE Level VI standards. It is approved to IEC/EN/UL 62368-1 and meets EN55032 Class B and CISPR/FCC Class B emissions standards, making it suitable for Information Technology Equipment (ITE) applications.
Key features include over-voltage protection and continuous short-circuit protection. The unit operates within a wide temperature range of -20°C to 60°C and can function at altitudes up to 5000m. Its compact dimensions are 72.0mm x 35.0mm x 52.0mm, and it comes with a 1.80m (70.9") cord.
The TRG1512-E-01E03 VI is designed for commercial use and is certified by CE, cULus, FCC, GS, PSE, and TUV.
The adapter provides a 12Vdc output voltage and a 1A output current.
The adapter has a power rating of 12W.
The adapter accepts a universal input voltage range of 90-264Vac.
The adapter can operate in temperatures ranging from -20°C to 60°C.
Yes, it meets CoC Tier 2 and DoE Level VI efficiency standards.
