| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

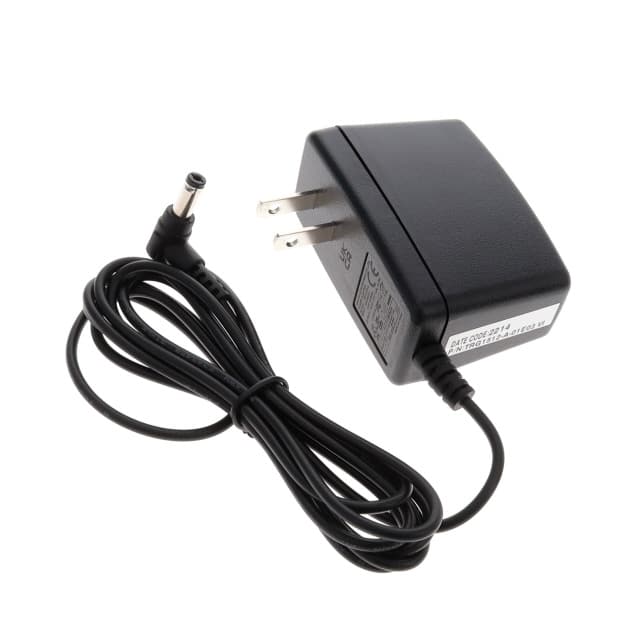

The Cincon Electronics Co. LTD TRG1512-A-01E03 VI is a 15-watt AC-DC I.T.E. switching adapter designed for wall mounting. This Class II adapter operates with a universal input voltage range of 90-264Vac and provides a stable 12Vdc output at 1A, delivering a total of 12W.
Key features include high efficiency up to 86%, low no-load power consumption (<75mW), and compliance with DoE Level VI and CoC Tier 2 standards. The adapter is approved to IEC/EN/UL 62368-1 and meets EN55032 Class B and CISPR/FCC Class B emissions standards. It offers over-voltage protection and continuous short-circuit protection.
With a compact size of 72.0mm x 35.0mm x 52.0mm, it is suitable for various ITE applications. The adapter includes a NEMA 1-15P input connector and a 1.80m cord with a positive center DC output plug. Its operating temperature range is -20°C to 60°C, and it can operate at altitudes up to 5000m.
90-264Vac.
-20°C to 60°C.
12Vdc at 1A.
85% at 230Vac and 75% load.
100mV maximum.
72.0mm x 35.0mm x 52.0mm.
1.80m.
