| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Class | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

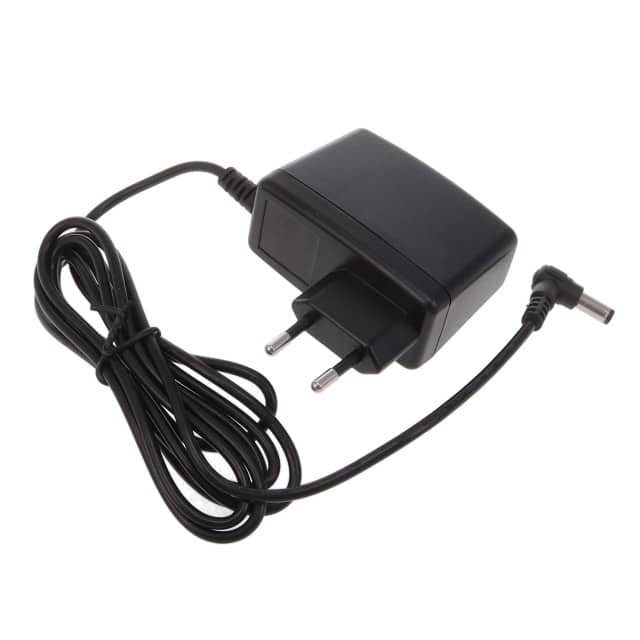

The Cincon TRG1505-E-01E03 VI is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 2A, providing a total power of 10W.
This adapter operates with a universal input voltage range of 90-264Vac and features high efficiency up to 80%. It meets stringent safety and EMI standards, including IEC/EN/UL 62368-1 and EN55032 Class B. The unit is designed for reliable operation within an ambient temperature range of -20°C to 60°C and can function at altitudes up to 5000m.
Key features include low no-load power consumption (<75mW), over-voltage protection, and continuous short-circuit protection. The adapter utilizes a fixed blade input type and a KSC 8305 input connector, with a cord length of 1.80m. Its compact dimensions (72.0mm x 35.0mm x 52.0mm) and Class II wall mount form factor make it suitable for various space-constrained designs.
90-264Vac universal input.
Wall mount (Class II).
-20°C to 60°C.
Output: 5Vdc at 2A (10W).
80% typical at 75% load, meeting Level VI and CoC Tier 2.
IEC/EN/UL 62368-1, EN55032 Class B, CISPR/FCC Class B. Approvals: CE, cULus, FCC, GS, PSE, TUV.
<75mW maximum.
