| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

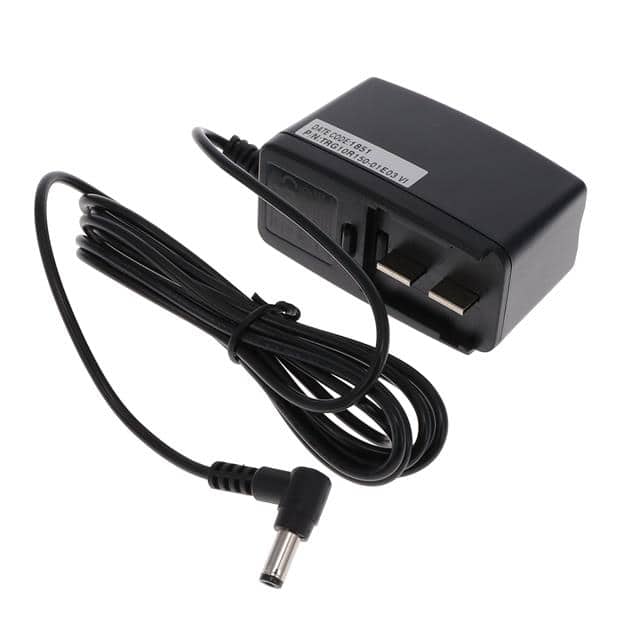

This AC/DC wall mount adapter from Cincon Electronics, part number TRG10R150-01E03 VI, delivers a 15V output with a maximum power of 11W. It meets Level VI efficiency standards and CoC Tier 2 requirements, making it suitable for international use.
The adapter is designed for ITE (Commercial) applications and operates within a temperature range of -20°C to 60°C. It features a wall mountable Class II form factor with a multi-blade input connector (sold separately) and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization.
Key specifications include a low no-load power consumption of 75mW (Max) and a cord length of 70.9 inches (1.80m). The dimensions are 72.6mm x 35.6mm x 46.3mm. It is approved by CE, cULus, FCC, GS, PSE, and TUV.
The output voltage is 15V DC.
The output current is 700mA.
The power rating is 11W.
It holds CE, cULus, FCC, GS, PSE, and TUV approvals.
The operating temperature range is -20°C to 60°C.
The output connector is a right-angle barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.
The cord length is 70.9 inches (1.80m).
