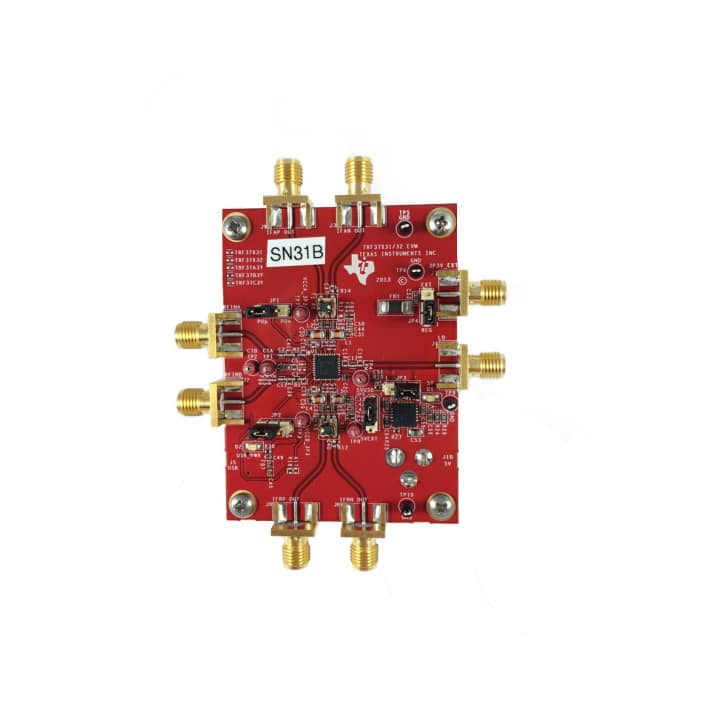

The TRF37C32EVM is an evaluation module for the Texas Instruments TRF37C32 wideband dual down converter mixer with integrated IF amplifier. The device employs integrated baluns for single-ended RF and LO inputs, simplifying board design. The IF amplifier operates from 30 MHz to 500 MHz in an open-collector topology, supporting a variety of IF frequencies and bandwidths.
The mixer provides excellent spurious performance and good channel-to-channel isolation, making it suitable for diversity applications. Each channel can be independently powered down with fast response times for TDD operation. The evaluation board operates from a single 3.3V supply and dissipates 500 mW per channel. It includes a low-power mode option for power-sensitive applications.
Supplied contents include the populated evaluation board and support documentation. The board is designed for easy connection to RF sources and measurement equipment. No additional external components are required for basic operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $256.77 | $256.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The evaluation board supports RF input frequencies from 1.7 GHz to 3.8 GHz.
The typical gain is 10 dB.
The typical noise figure is 9.5 dB.
The board operates from a single 3.3V supply.
Each channel dissipates 500 mW.
It is reported as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The MSL is reported as 1 (Unlimited), but this is unverified.
