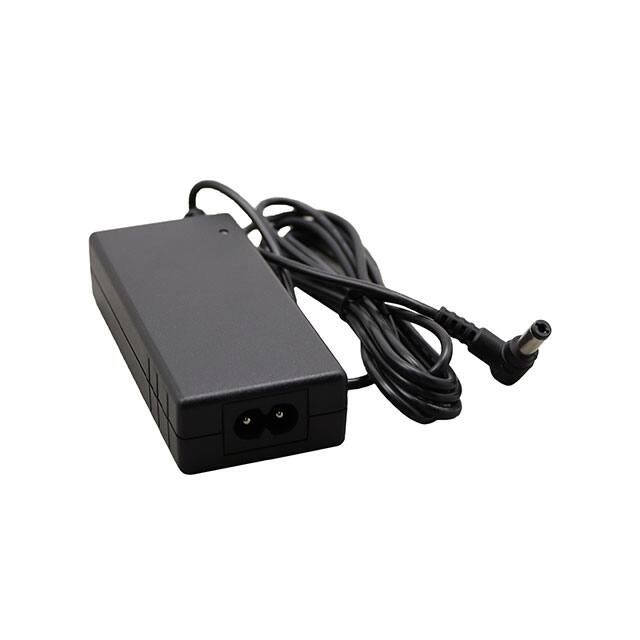

TRE36A360-01E03 VI The Cincon TRE36A360-01E03 VI is a 36W AC/DC desktop adapter providing a 36V output. It meets Level VI efficiency standards and is designed for ITE commercial applications.
Mfr Part #:

TRE36A360-01E03 VI

Mfr Name: Cincon Electronics Co. LTD
Cincon Electronics Co. LTD
The Cincon TRE36A360-01E03 VI is a 36W AC/DC desktop adapter providing a 36V output. It meets Level VI efficiency standards and is designed for ITE commercial applications.
Stock on Request

TRE36A360-01E03 VI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
Width

TRE36A360-01E03 VI Description

Short technical summary and product information.

This AC/DC desktop adapter from Cincon Electronics Co. LTD, part number TRE36A360-01E03 VI, delivers 36 watts of power at a 36V output. It is designed for ITE (Commercial) applications and features an input connector compatible with IEC 320-C8, requiring a separate cord. The output is provided via a barrel plug with positive center polarization, measuring 2.1mm ID x 5.5mm OD x 12.0mm.



With an input voltage range of 100-240 VAC, this adapter is suitable for international use. It boasts Level VI efficiency and CoC Tier 2 compliance, ensuring energy savings and reduced standby power consumption, with a maximum no-load power consumption of 75mW. The operating temperature range is from -20°C to 60°C.



The adapter has a compact form factor, measuring 100.0mm x 45.0mm x 22.5mm. It is classified as Desktop (Class II) and has received various agency approvals including CE, cULus, FCC, GS, and PSE. The RoHS status is compliant with RoHS3, and it has an MSL of 1.

TRE36A360-01E03 VI Quick Information

Product Type: AC/DC Desktop Adapter
Series: TRE36A360
Canonical Name: Cincon Electronics Co. LTD TRE36A360-01E03 VI AC/DC Desktop Adapter
Subcategory: Desktop Adapter

TRE36A360-01E03 VI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TRE36A360-01E03 VI Features

  • 36W AC/DC desktop adapter with 36V output.
  • Meets Level VI and CoC Tier 2 efficiency standards.
  • IEC 320-C8 input and 2.1mm x 5.5mm barrel plug output.
  • Operates from -20°C to 60°C.
  • Approved by CE, cULus, FCC, GS, and PSE.

TRE36A360-01E03 VI Applications

  • Suitable for ITE commercial equipment.
  • Ideal for general purpose power applications.
  • Designed for international voltage compatibility.

TRE36A360-01E03 VI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

100-240 VAC

What is the output voltage?

36V

What is the output current?

1A

What is the output power?

36W

What is the efficiency rating?

Level VI, CoC Tier 2

What is the operating temperature range?

-20°C to 60°C

What is the form factor?

Desktop (Class II)
