| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

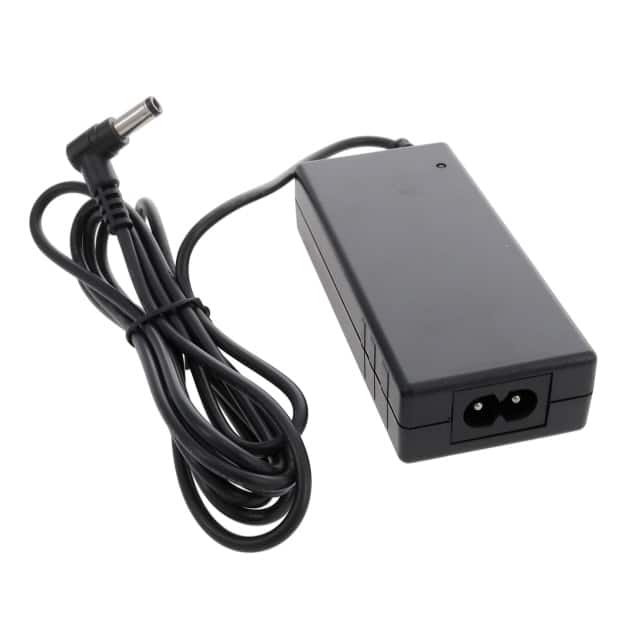

The Cincon TRE36A135-01G03 VI is an AC/DC desktop power adapter designed for ITE commercial applications. It delivers a stable 13.5V output with a maximum power of 32W and an input current of 2.4A.
This adapter complies with Level VI energy efficiency standards and CoC Tier 2 requirements, ensuring reduced energy consumption. It features an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization.
Operating within a temperature range of -20°C to 60°C, the adapter has dimensions of 100.0mm x 45.0mm x 22.5mm. It has a low no-load power consumption of 75mW (Max) and utilizes a Class II desktop form factor. The input type requires a cord, sold separately, with a length of 1.80m.
Key specifications include an input voltage range suitable for international use and approval by agencies such as CE, cULus, FCC, GS, and PSE, indicating broad compliance for various markets.
The TRE36A135-01G03 VI adapter has an output voltage of 13.5V and a power rating of 32W.
The adapter meets Level VI efficiency and CoC Tier 2 standards.
It features an IEC 320-C8 input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization.
The adapter can operate in temperatures ranging from -20°C to 60°C.
Yes, the adapter is RoHS3 Compliant.
