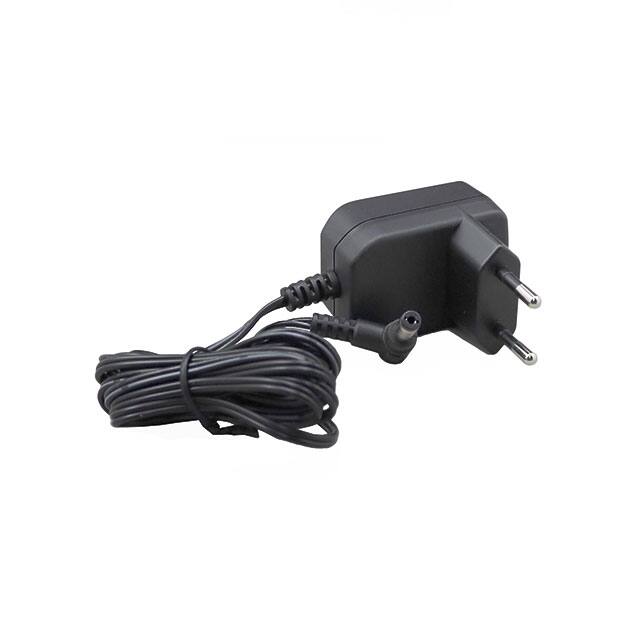

The Cincon Electronics TRE06S150-E-01E03 VI is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 15V output at 6W of power, with an output current of 400mA.
This adapter features Level VI efficiency and CoC Tier 2 compliance, ensuring energy savings and reduced heat generation. It operates within a wide temperature range of -20°C to 80°C and has a low no-load power consumption of 75mW maximum.
The unit has a compact mechanical design with dimensions of 52.0mm x 36.0mm x 25.2mm. It utilizes a KSC 8305 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization. The integrated cord measures 1.80m.
Safety and regulatory compliance are met with CE, cULus, and FCC approvals, adhering to standards like 60950-1 and 62368-1. The adapter is RoHS3 compliant and has an MSL rating of 1.
The adapter provides a 15VDC output voltage and a 400mA output current.
The adapter has a power rating of 6W.
The adapter meets Level VI efficiency and CoC Tier 2 standards.
The adapter can operate between -20°C and 80°C.
It uses a Barrel Plug R/A with a 2.1mm I.D. x 5.5mm O.D. x 12.0mm size and positive center polarization.
Yes, the adapter is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
