| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Width |

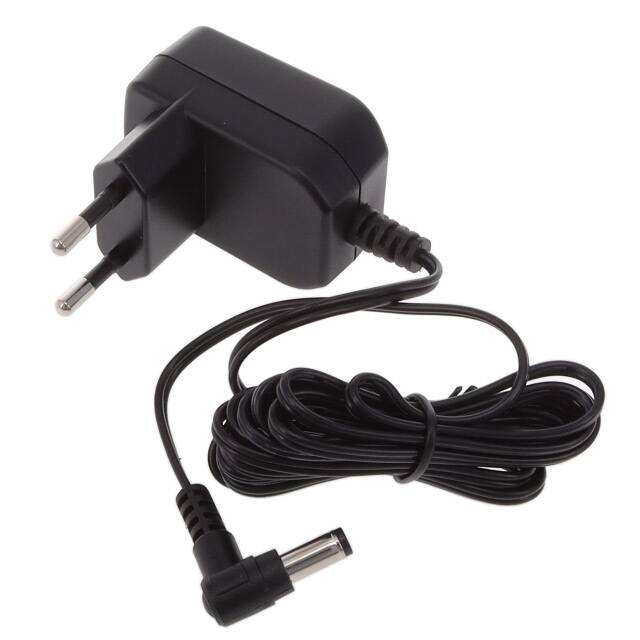

This AC/DC wall mount adapter from Cincon Electronics Co. LTD, part number TRE06S150-E-01A03 VI, delivers a 15V output with a 6W power rating. It is designed for ITE (Commercial) applications and features an efficiency rating of Level VI, CoC Tier 2.
The adapter operates within a temperature range of -20°C to 80°C and has a no-load power consumption of 75mW maximum. Its physical dimensions are 52.0mm x 36.0mm x 25.2mm. The input connector is KSC 8305 with a fixed blade input type, suitable for European regions. The output connector is a right-angle barrel plug with 2.1mm inner diameter, 5.5mm outer diameter, and 12.0mm length, featuring a positive center polarization.
Compliance is met with standards such as 60950-1 and 62368-1, and it holds approvals from CE, cULus, and FCC. The unit is RoHS3 compliant and has an MSL rating of 1. The cord length is 1.80 meters.
The output voltage is 15V and the output current is 400mA.
The power dissipation is 6W.
It meets Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is -20°C to 80°C.
It has a right-angle barrel plug with 2.1mm inner diameter and 5.5mm outer diameter.
It is certified to CE, cULus, and FCC standards.
