| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

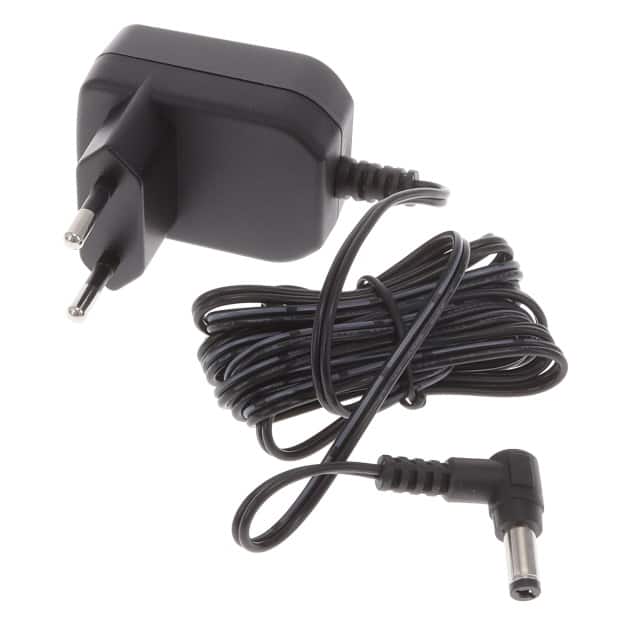

The Cincon TRE06S120-E-01A03 VI is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 12V output at 6W of power, with a maximum current of 500mA.
This adapter features Level VI efficiency and CoC Tier 2 compliance, ensuring reduced energy consumption. It operates within a wide temperature range of -20°C to 80°C and has a low no-load power consumption of 75mW maximum.
The unit is housed in a compact wall mount form factor (Class II) with dimensions of 52.0mm x 36.0mm x 25.2mm. It includes a fixed blade input connector suitable for European regions and a right-angle barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with positive center polarization.
Safety standards include compliance with 60950-1 and 62368-1, with approval agencies such as CE, cULus, and FCC. The adapter also adheres to RoHS3 compliance.
The input voltage range is 100-240 VAC.
The operating temperature range is -20°C to 80°C.
This adapter is a wall mount (Class II) design.
Output voltage is 12V DC at 500mA current.
It meets Level VI efficiency and CoC Tier 2.
It has CE, cULus, and FCC approvals.
Dimensions are 52.0mm x 36.0mm x 25.2mm (L x W x H).
