| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

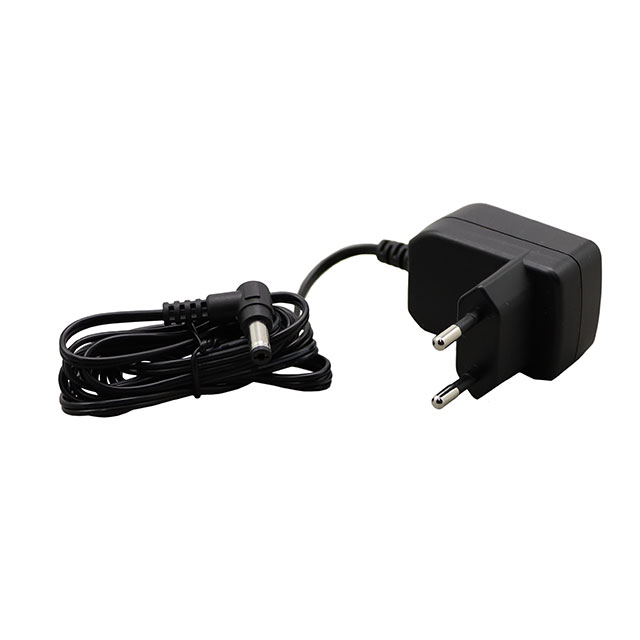

The Cincon TRE06S090-E-01E03 VI is an AC/DC external wall mount adapter with a power rating of 5.9W. It delivers a stable 9V output voltage and a maximum output current of 650mA.
This adapter meets Level VI efficiency standards and CoC Tier 2 requirements, ensuring energy efficiency. It operates within a wide input voltage range of 90 to 264 VAC and features a fixed blade input type.
Designed for ITE (Commercial) applications, the TRE06S090-E-01E03 VI utilizes a positive center polarization and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm). Its compact dimensions are 52.0mm x 36.0mm x 25.2mm, making it suitable for various installations. The adapter also complies with safety standards 60950-1 and 62368-1 and is RoHS3 compliant.
The unit is housed in a Class II, wall mountable form factor and includes a 1.80m cord. It operates reliably in temperatures ranging from -20°C to 80°C.
The adapter provides a 9V output voltage and a maximum output current of 650mA.
The power rating of the TRE06S090-E-01E03 VI adapter is 5.9W.
This adapter meets Level VI efficiency and CoC Tier 2 standards.
The adapter can operate in temperatures ranging from -20°C to 80°C.
The dimensions are 52.0mm in length, 36.0mm in width, and 25.2mm in height.
Yes, the adapter is RoHS3 Compliant.
It uses a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm output connector.
