| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

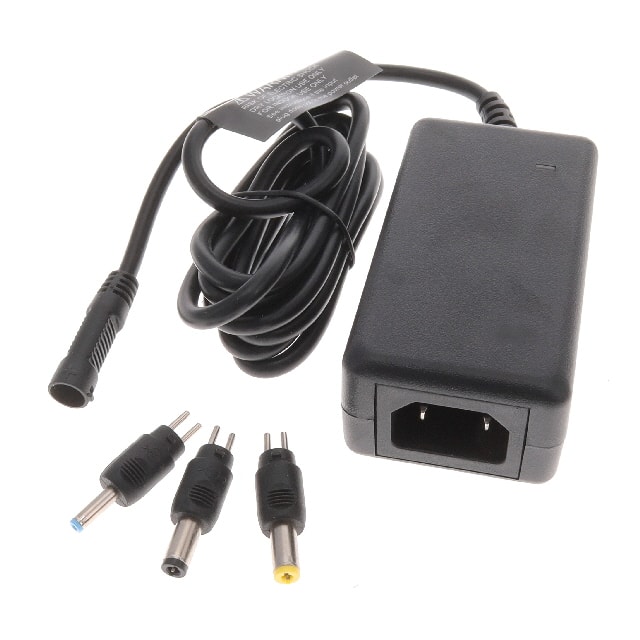

This AC/DC desktop adapter from GlobTek, Inc., part number TR9WZ900T00-IMR6B, delivers 18 watts of power with a 20V output voltage and 900mA current.
It meets Level VI efficiency standards and has a low no-load power consumption of 75mW maximum. The adapter operates within a temperature range of -10°C to 40°C. Its dimensions are 87.0mm x 46.5mm x 32.0mm.
The input connector is IEC 320-C18, and it is designed for international use. The output connector is a versatile barrel plug kit supporting multiple sizes, including 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm. The adapter is suitable for household appliances, ITE (Commercial), and medical applications.
Compliance includes standards such as 1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61558-1, and 62368-1, with approval from agencies like CB, CCC, CE, cETLus, and UL.
The TR9WZ900T00-IMR6B adapter has an output voltage of 20V and an output current of 900mA.
The power rating of the TR9WZ900T00-IMR6B adapter is 18W.
The operating temperature range for this adapter is -10°C to 40°C.
The TR9WZ900T00-IMR6B uses an IEC 320-C18 input connector.
The dimensions of the TR9WZ900T00-IMR6B adapter are 87.0mm in length, 46.5mm in width, and 32.0mm in height.
