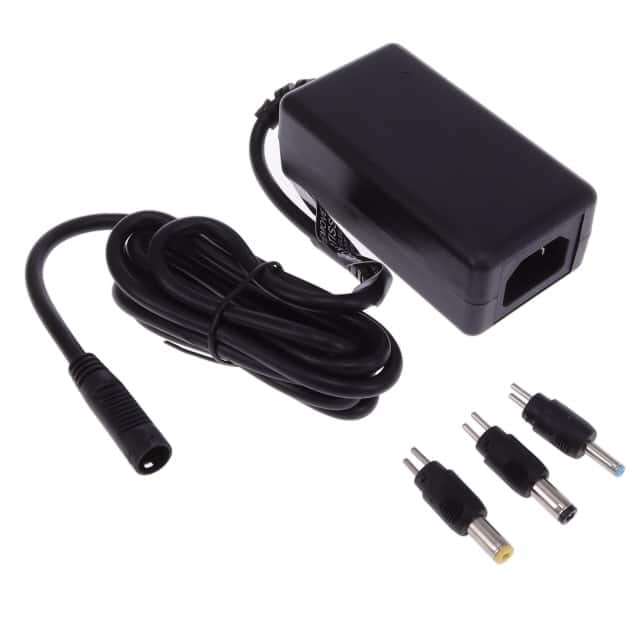

This GlobTek, Inc. AC/DC desktop power adapter, part number TR9WI750T00-IMR6B, is designed for various applications including ITE (Commercial) and Medical use. It features a wide input voltage range of 100-240V AC at 50-60 Hz, ensuring global compatibility.
The adapter delivers a regulated output of 30.0V at 0.6A, providing a total of 18.00W of power. It meets Efficiency Level VI standards and has a low no-load power consumption of 75mW maximum.
Key mechanical specifications include dimensions of 87.0mm x 46.5mm x 32.0mm. The input connector is an IEC 60320/C18, and it utilizes a T-plug system for output, including common barrel plug sizes (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm). The cord length is 1.50 meters.
This power supply is approved by multiple agencies including CE, cETLus, FCC, and UL, indicating compliance with international safety and performance standards. It is suitable for household appliances, ITE, and medical applications.
The TR9WI750T00-IMR6B provides an output voltage of 30.0V at 0.6A.
The adapter has an output power rating of 18.00W.
The adapter accepts a universal input voltage range of 100-240V AC.
This adapter meets the Level VI efficiency standard.
The dimensions are 87.0mm in length, 46.5mm in width, and 32.0mm in height.
It uses an IEC 60320/C18 input connector.
The operating temperature range is -10°C to 40°C.
