| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

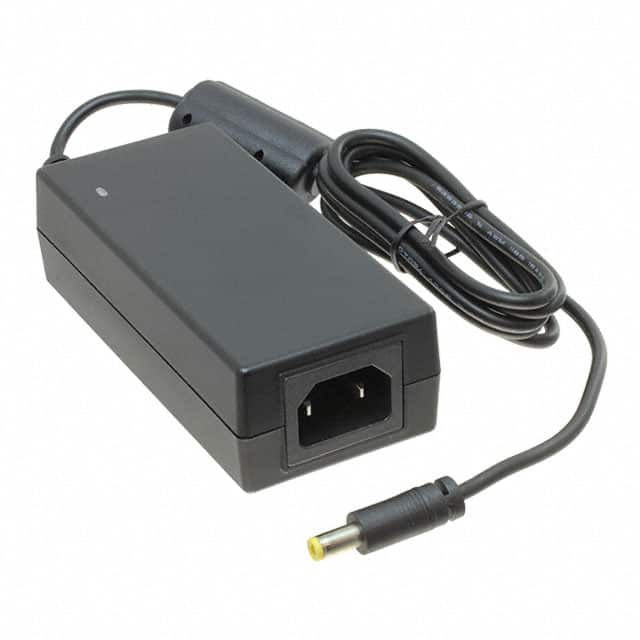

The GlobTek, Inc. TR9WI2500CCPCIMR6B is a regulated switchmode AC-DC power supply designed for desktop or external use. This adapter provides a continuous output power of 60W, with a stable 24V output at a maximum current of 2.5A. It meets USA DOE Level VI and Eco-design Directive efficiency standards, ensuring energy savings.
The input rating for this power supply is 100-240 VAC at 50-60 Hz, utilizing an IEC 60320/C18 input connector. The output features a female barrel connector measuring 5.5mm x 2.1mm with a 11.0mm length and center positive polarization. The unit operates within a temperature range of -20°C to 40°C and has dimensions of 117.5mm x 53.5mm x 34.2mm.
Designed for applications in Information Technology Equipment (ITE) and Medical fields, the TR9WI2500CCPCIMR6B carries multiple international approvals including CB, CCC, CE, cETLus, EAC, PSE, RCM, S-Mark, UkrSEPRO, and VCCI. The input cord is sold separately, and the unit is supplied in bulk packaging.
The TR9WI2500CCPCIMR6B adapter has an output voltage of 24V and a maximum output current of 2.5A.
The power rating of the TR9WI2500CCPCIMR6B is 60W.
The input voltage range for the TR9WI2500CCPCIMR6B is 100-240 VAC.
The TR9WI2500CCPCIMR6B is approved for ITE (Commercial) and Medical applications.
The operating temperature range for the TR9WI2500CCPCIMR6B is -20°C to 40°C.
The TR9WI2500CCPCIMR6B uses a female barrel connector measuring 5.5mm O.D. x 2.1mm I.D. x 11.0mm with positive center polarization.
