| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

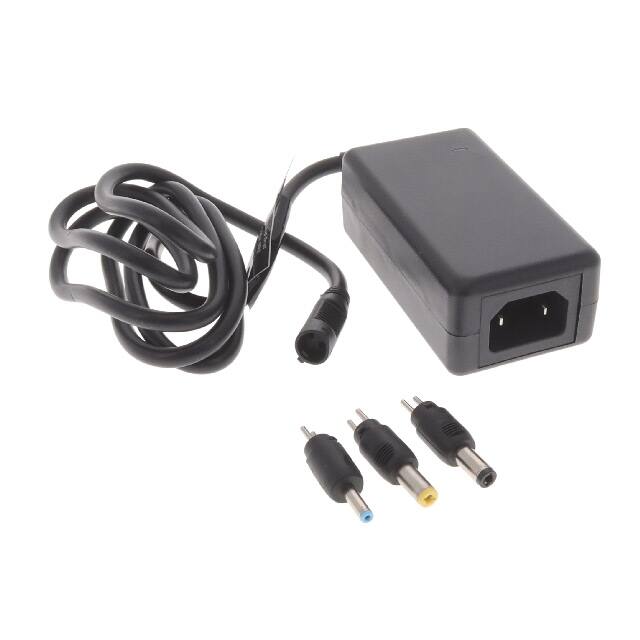

The GlobTek TR9WD2000T00-IMR6B is a versatile AC/DC desktop adapter designed for various applications, including household appliances, ITE (Commercial), and Medical use. It delivers a stable 9V output with a maximum current of 2A, providing a total power of 18W.
This adapter meets Efficiency Level VI and CoC Tier 2 standards, ensuring energy efficiency. It features a standard IEC 320-C18 input connector and offers multiple output connector options via a barrel plug kit, accommodating 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm sizes. The input voltage range is wide, from 90 to 264 VAC, making it suitable for international use.
Designed for desktop (Class II) applications, the adapter has compact dimensions of 87.0mm x 46.5mm x 32.0mm. It operates within a temperature range of -10°C to 40°C and has a low no-load power consumption of 75mW maximum. The input cord is sold separately, with a length of 47.2" (1.20m) available.
Compliance is assured with numerous agency approvals including CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, S-Mark, UKRSepro, UL, and VCCI. It adheres to various international standards such as IEC 60335-1, IEC 60601-1-11, IEC 60601-1-2, IEC 60950-1, IEC 61558-1, and IEC 62368-1.
90-264 VAC.
Bulk.
-10°C to 40°C.
9V at 2A.
Level VI and CoC Tier 2.
A barrel plug kit with 1.3mm x 3.5mm, 2.1mm x 5.5mm, and 2.5mm x 5.5mm sizes.
1310, 60335-1, 60601-1-11, 60601-1-2, 60950-1, 61558-1, 62368-1.
